HBS-R10-1-2-H-132-PG

HBS Base With 12 gauge channel 1-5/8" H-132 and Rollers in Pre-Galvanized Steel

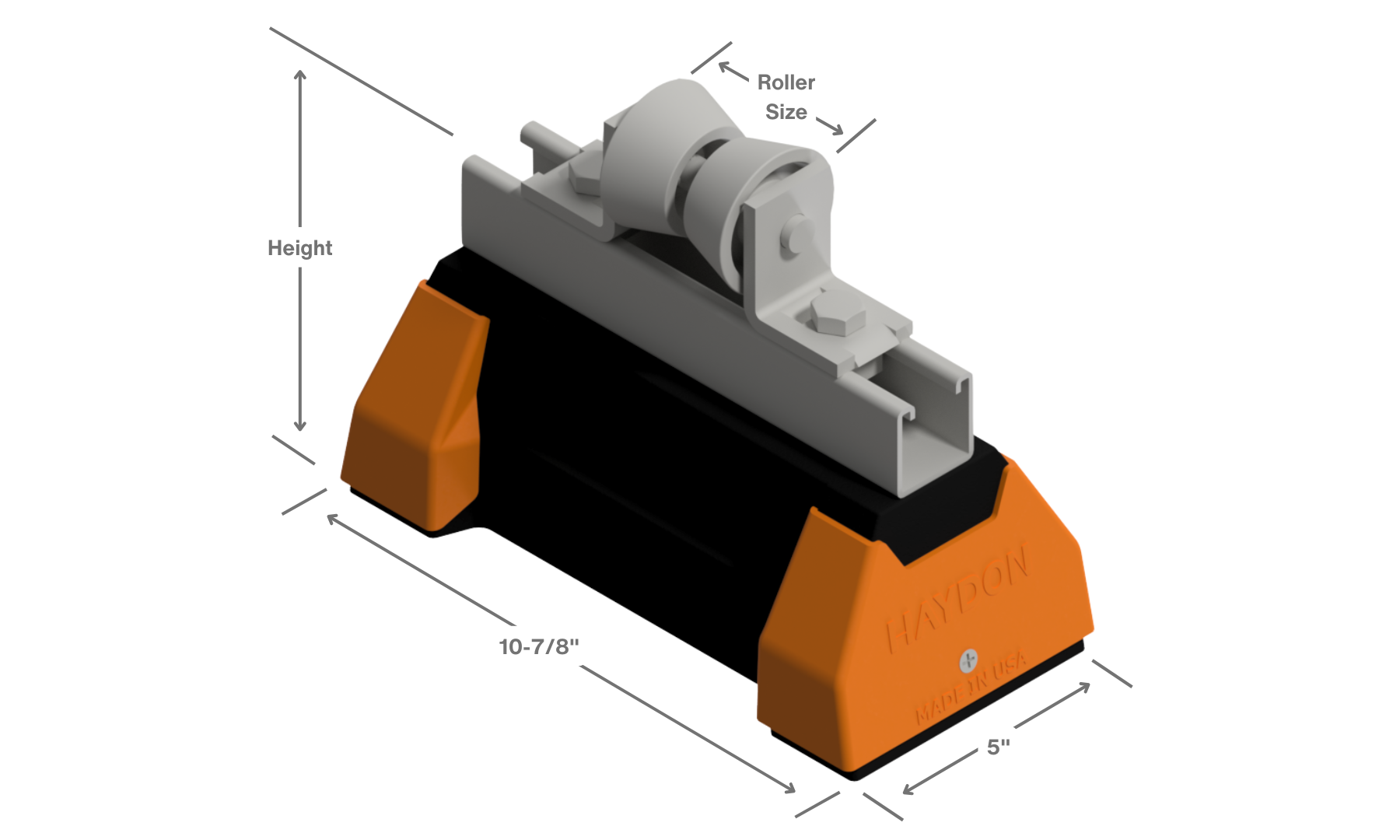

  • H-Block Standard R Roller series comes with1-5/8" channel H-132 and rollers
  • The HBS R Roller series is designed for superior support of natural gas and refrigeration pipes.
  • The roller allows for longitudinal movements aof the pipe.
  • All rooftop support systems come pre-assembled for easy installation.
  • Compatible with most rooftop materials or other flat surfaces.
  • Finish: Pre-galvanized ASTM 653 steel
  • Other Finishes Available: Hot dipped galvanized ASTM A-123, Zinc trivalen chromium ASTM B-633-85, Powder coated spr-green ASTM B-117, and PVC coating 40ML thickness (available upon request only).
  • Material: Base is 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing.

Submittal Sheets_HBS-R Roller Series Request Quote

Specifications

Model # Height Width Height to Center Pipe Roller Size (O.D.) Base Length Strut Length # of Bases Weight (lbs.) Uniform Load Capacity (lbs)* Safety Factor
HBS-R10-1-2-H-132-PG 8 15/16" (203 mm) 10 7/8" (276 mm) 7" (178 mm) 1" to 2" (25 to 51 mm) 10 7/8" (276 mm) 5" (127 mm) 1 9.1 2500 2

*This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity. Strut Torque Setting - All load capacities stated herein are based on the use of Haydon Grip Lock Nuts tightened to the torque values shown in technical section. When attaching strut to H-Block recommended bolt torque settings 10 to 12 ft-lbs.

Certifications

  • LEEDS certifiable
  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)

Technical Information

Model No. Nominal Pipe Size Pipe OD Dist. Block Base to Pipe Center Length of Strut Base Width Base Length Weight (lbs) Uniform Load Capacity (lbs)* Safety Factor
HBS-R10-1-2-H-132-PG 1" 1.315" (33mm) 85/8" (219mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 9.1 2500 2
HBS-R10-1-2-H-132-PG 11/4" 1.660" (42mm) 813/16" (224mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 9.1 2500 2
HBS-R10-1-2-H-132-PG 11/2" 1.900" (48mm) 815/16" (227mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 9.1 2500 2
HBS-R10-1-2-H-132-PG 2" 2.375" (60mm) 93/16" (233mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 9.1 2500 2
HBS-R10-12-3 1/2-H-132-PG 2" 2.375" (60mm) 91/16" (233mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 8.9 2500 2
HBS-R10-2-3 1/2-H-132-PG 21/2" 2.875" (73mm) 95/16" (237mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 8.9 2500 2
HBS-R10-2-3 1/2-H-132-PG 3" 3.500" (89mm) 95/8" (244mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 8.9 2500 2
HBS-R10-2-3 1/2-H-132-PG 31/2" 4.000" (102mm) 93/4" (248mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 8.9 2500 2
HBS-R10-4-6-H-132-PG 4" 4.500" (114mm) 10" (254mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 9.4 2500 2
HBS-R10-4-6-H-132-PG 5" 5.563" (141mm) 109/16" (268mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 9.4 2500 2
HBS-R10-4-6-H-132-PG 6" 6.625" (168mm) 111/8" (283mm) 10" (254mm) 5" (127mm) 107/8" (276mm) 9.4 2500 2

*This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity. Strut Torque Setting - All load capacities stated herein are based on the use of Haydon Grip Lock Nuts tightened to the torque values shown in technical section. When attaching strut to H-Block recommended bolt torque settings 10 to 12 ft-lbs.

Model # Height Width Height to Center Pipe Roller Size (O.D.) Base Length Strut Length # of Bases Weight (lbs.) Uniform Load Capacity (lbs)* Safety Factor
HBS-R10-2-3-1/2-H-132-PG 9 3/4" (206mm) 10 7/8" (276mm) 7" (178mm) 2" to 3-1/2" (51 to 89mm) 10 7/8" (276mm) 5" (127mm) 1 8.94 2500 2
HBS-R10-4-6-H-132-PG 11 1/8" (203mm) 10 7/8" (276mm) 7" (178mm) 4" to 6" (102 to 152mm) 10 7/8" (276mm) 5" (127mm) 1 9.37 2500 2
HBS-R10-8-10-H-132-PG 15 1/8" (386mm) 24" (610mm) 8 5/8" (219mm) 8" to 10" (203 to 1254mm) 10 7/8" (276mm) 5" (127mm) 2 21.26 2500 2
