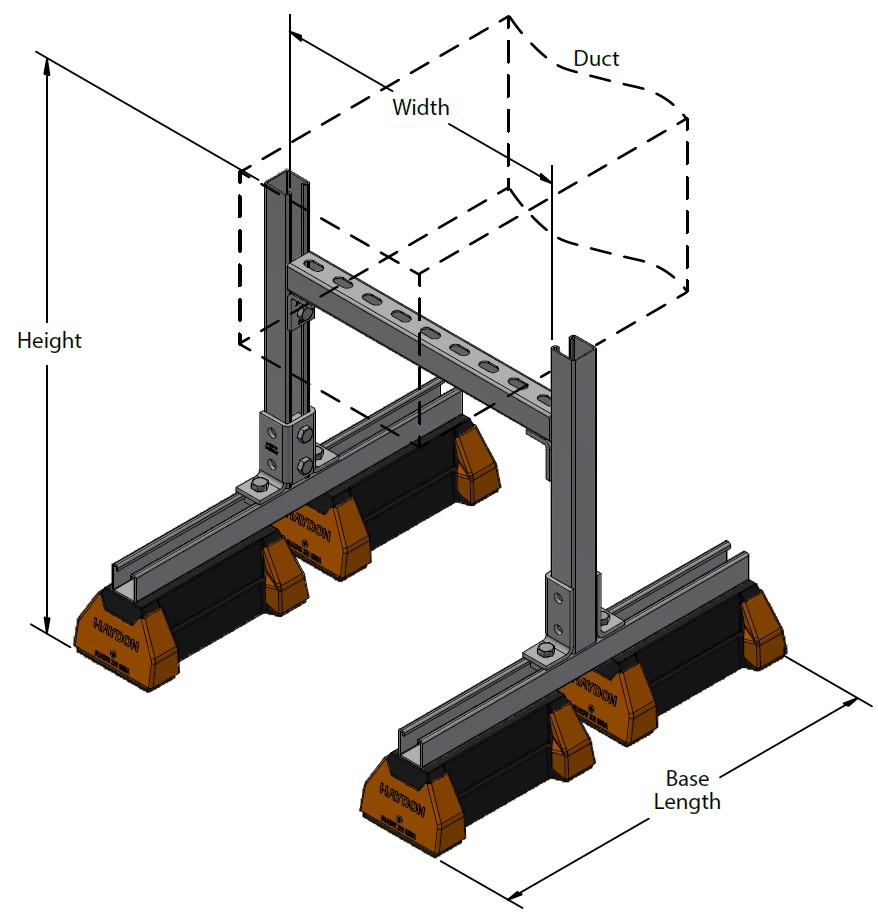

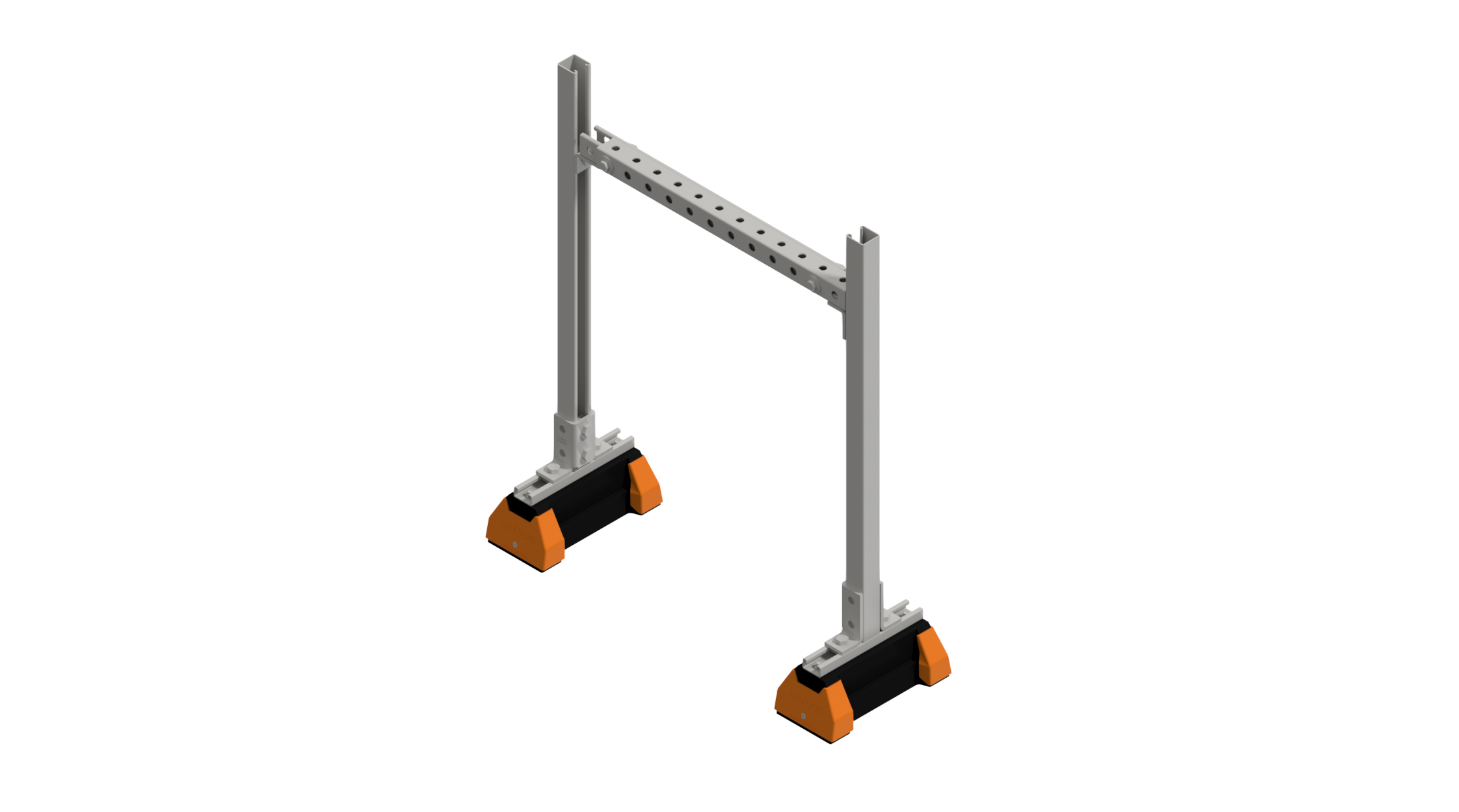

HBS-DSFW Rooftop Support With 12 Gauge Channel and Fixed Width and Adjustable Height Duct Support

  • H-Block Standard HBS-DSFW comes with 4 bases, cross beams and 12 gauge channel 1-5/8" H-132-OS (Open slot is 9/16").
  • The HBS-DSFW is designed specifically for supporting superior duct work support of natural gas and refrigeration pipes.
  • The roller allows for longitudinal movements of the pipe.
  • All rooftop support systems come pre-assembled for easy installation.
  • Compatible with most rooftop materials or other flat surfaces.
  • Finish: Pre-galvanized ASTM 653 steel
  • Other Finishes Available: Hot dipped galvanized ASTM A-123, Zinc trivalen chromium ASTM B-633-85, Powder coated spr-green ASTM B-117, and PVC coating 40ML thickness (available upon request only).
  • Material: Base is 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing.
  • All hardware required for assembly is included

Submittal Sheets_HBS-DS Duct Support Series With Fixed Width And Adjustable Height Request Quote

Specifications

Height Width Base Length Weight (lbs.) Uniform Load Capacity (lbs)* Safety Factor
23" (584 mm) 18" (457 mm) 24" (610 mm) 39.8 1,715 2.0

* This load is only for the capacity of the components in this assembly. Consult roofing manufacturer or engineer for roof load capacity.

Certifications

  • LEEDS certifiable
  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)

Technical Information

Model # Part # Height Width Base Length Weight (lbs.) Uniform Load Capacity (lbs)* Safety Factor
HBS-DS2FW-2324-H-132-PG 80191 23"(584 mm) 24"(610 mm) 24"(610 mm) 40.67 1286 2
HBS-DS2FW-2336-H-132-PG 80192 23"(584 mm) 36"(914 mm) 24"(610 mm) 42.33 857 2
HBS-DS2FW-2348-H-132-PG 80193 23"(584 mm) 48"(1219 mm) 24"(610 mm) 43.99 643 2
HBS-DS2FW-2918-H-132-PG 80200 29"(737 mm) 18"(457 mm) 24"(610 mm) 41.58 1715 2
HBS-DS2FW-2924-H-132-PG 80201 29"(737 mm) 24"(610 mm) 24"(610 mm) 42.41 1286 2
HBS-DS2FW-2936-H-132-PG 80202 29"(737 mm) 36"(914 mm) 24"(610 mm) 44.08 857 2
HBS-DS2FW-2948-H-132-PG 80203 29"(737 mm) 48"(1219 mm) 24"(610 mm) 45.74 643 2
HBS-DS2FW-4118-H-132-PG 80300 41"(1041 mm) 18"(457 mm) 24"(610 mm) 45.07 1715 2
HBS-DS2FW-4124-H-132-PG 80301 41"(1041 mm) 24"(610 mm) 24"(610 mm) 45.9 1286 2
HBS-DS2FW-4136-H-132-PG 80158 41"(1041 mm) 36"(914 mm) 24"(610 mm) 47.56 857 2
HBS-DS2FW-4148-H-132-PG 80159 41"(1041 mm) 48"(1219 mm) 24"(610 mm) 49.22 643 2
HBS-DS3FW-5318-H-132-PG 80400 *53"(1346 mm) 18"(457 mm) 36"(914 mm) 62.23 1715 2
HBS-DS3FW-5324-H-132-PG 80401 *53"(1346 mm) 24"(610 mm) 36"(914 mm) 63.06 1286 2
HBS-DS3FW-5336-H-132-PG 80402 *53"(1346 mm) 36"(914 mm) 36"(914 mm) 64.72 857 2
HBS-DS3FW-5348-H-132-PG 80403 *53"(1346 mm) 48"(1219 mm) 36"(914 mm) 66.38 643 2

*Height 53" comes with 6 bases.
