HBS-CES-16-24-H-132-A-PG

Raised Bridge Length Rooftop Support With 2 HBS Bases and and 12 gauge channel 3-1/4" H-132-A in Pre-Galvanized Steel

  • H-Block Standard CES raised bridge series comes with 2 bases and 12 gauge channel 3-1/4" H-132-A or back-to-back channel H-132.
  • The HBS CES raised bridge series is designed for heavy duty rooftop applications requiring a heavier load bearing capacity.
  • All rooftop support systems come pre-assembled for easy installation.
  • Compatible with most rooftop materials or other flat surfaces.
  • Finish: Pre-galvanized ASTM 653 steel (for part #80132)
  • Other Finishes Available: Hot dipped galvanized ASTM A-123, Zinc trivalen chromium ASTM B-633-85, Powder coated spr-green ASTM B-117, and PVC coating 40ML thickness (available upon request only).
  • Material: Base is 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing.

Submittal Sheets_HBS-Raised Bridge Length With 2 HBS Bases and H-132A-Heavy Request Quote

Specifications

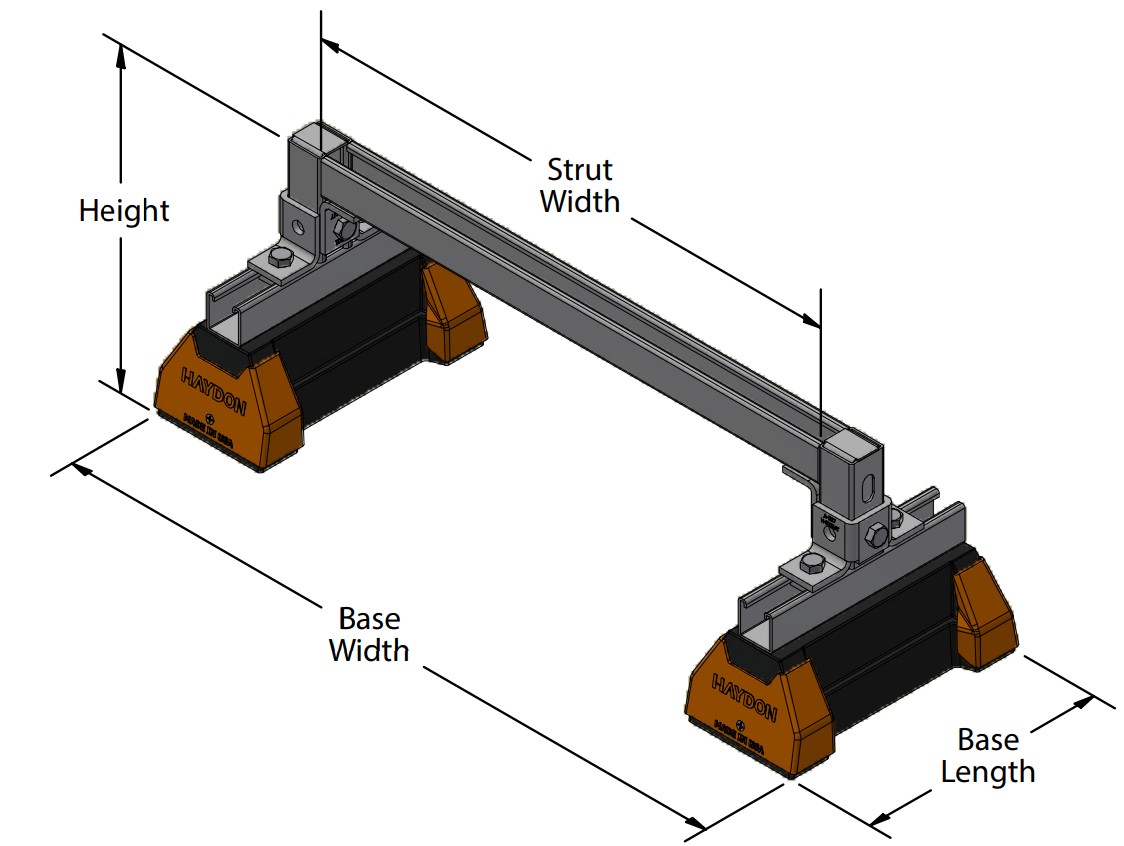

Height Base Width Base Length Strut Length Weight (lbs.) Uniform Load Capacity (lbs)* Safety Factor
16" (406 mm) 30-5/8" (763 mm) 10-7/8" (276 mm) 24" (610 mm) 30.62 2,940 2

* This load is only for the capacity of the components in this assembly. Consult roofing manufacturer or engineer for roof load capacity.

Certifications

  • LEEDS certifiable
  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)

Technical Information

Model # Part # Height Base Width Base Length Strut Length Weight (lbs.) Uniform Load Capacity (lbs)* Safety Factor
HBS-CES-16-36-H-132-A-PG 80133 16"(406 mm) 42-5/8"1067 mm) 10-7/8"(276 mm) 36"(914 mm) 32.96 2738 2
