HBS-CB10-28-H-132-PG

Bridge Length Rooftop Support With 2 HBS Bases & 12 gauge channel 1-5/8" H-132 in Pre-Galvanized Steel

  • H-Block Standard CB bridge series comes with 2 H-Block bases and 12 guage channel 1-5/8" H-132.
  • The HBS-CB series is perfect for supporting natural gas and refrigeration systems, cable tray, electrical conduit, multiple lines, HVAC equipment and many other applications.
  • It provides a longer mounting surface with strut lengths up to 8'.
  • All rooftop support systems come pre-assembled for easy installation.
  • Compatible with most rooftop materials or other flat surfaces.
  • Finish: Pre-galvanized ASTM 653 steel
  • Other Finishes Available: Hot dipped galvanized ASTM A-123, Zinc trivalen chromium ASTM B-633-85, Powder coated spr-green ASTM B-117, and PVC coating 40ML thickness (available upon request only).
  • Material: Base is 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing.

Submittal Sheets_HBS-CBBridge Series Request Quote

Specifications

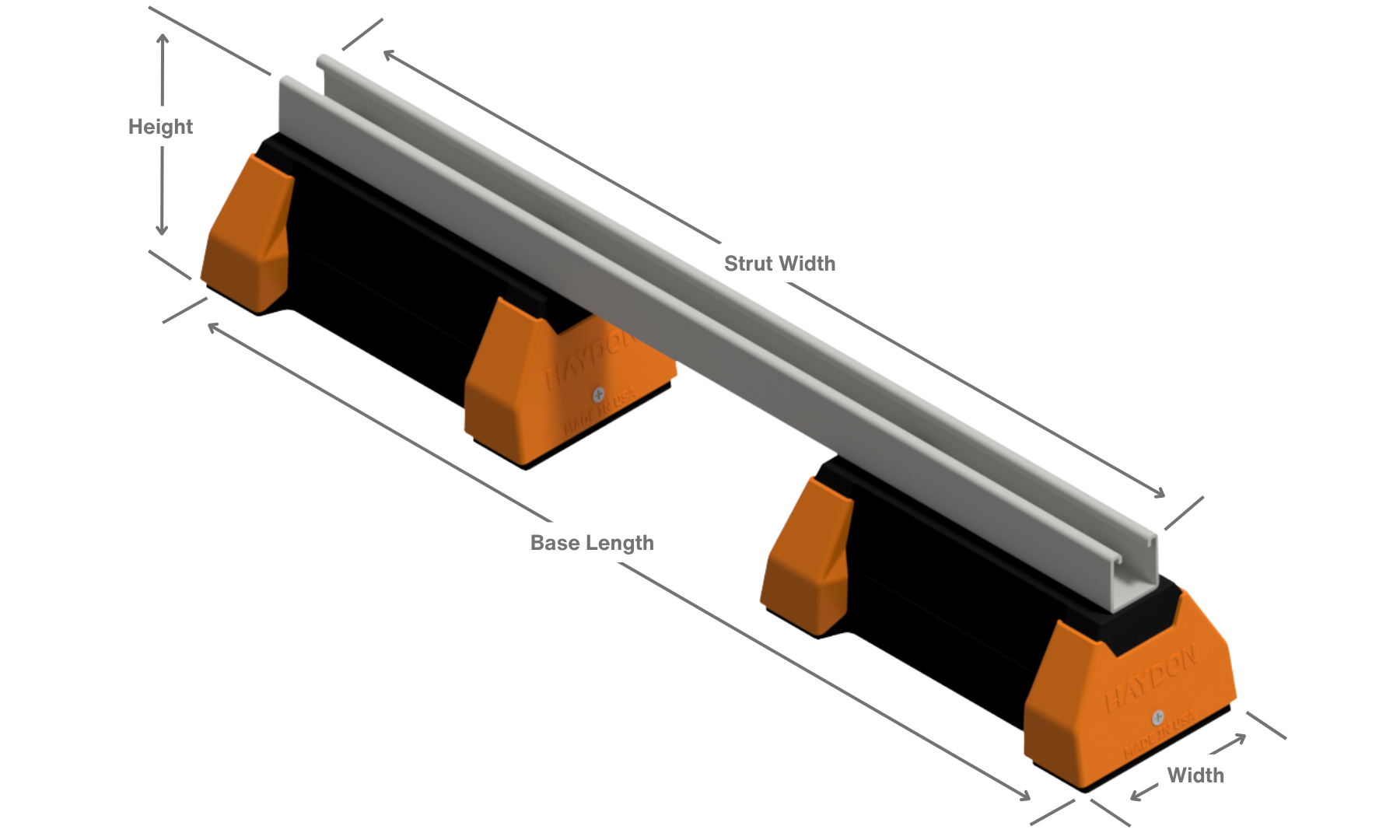

Height Width Strut Length Base Length Weight (lbs.) Uniform Load Capacity (lbs)* Safety Factor
5-5/8" (143 mm) 5" (127 mm) 28" (711 mm) 29-3/4" (756 mm) 13.96 lbs. 1,253 2

* This load is only for the capacity of the components in this assembly. Consult roofing manufacturer or engineer for roof load capacity.

Certifications

  • LEEDS certifiable
  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)

Technical Information

Model # Part # Height Width Strut Length Base Length Weight (lbs) Uniform Load Capacity (lbs)* Safety Factor
HBS-CB10-36-H-132-PG 80106 5-5/8" (143mm) 5" (127mm) 36" (914mm) 37-3/4" (959 mm) 15.18 974 2
HBS-CB10-42-H-132-PG 80107 5-5/8" (143mm) 5" (127mm) 42" (1067mm) 43-3/4" (1111 mm) 16.09 835 2
HBS-CB10-50-H-132-PG 80108 5-5/8" (143mm) 5" (127mm) 50" (1270mm) 51-3/4" (1314 mm) 17.31 702 2
HBS-CB10-60-H-132-PG 80109 5-5/8" (143mm) 5" (127mm) 60" (1524mm) 61-3/4" (1568 mm) 18.84 585 2
