HBS-10-H-164-PG

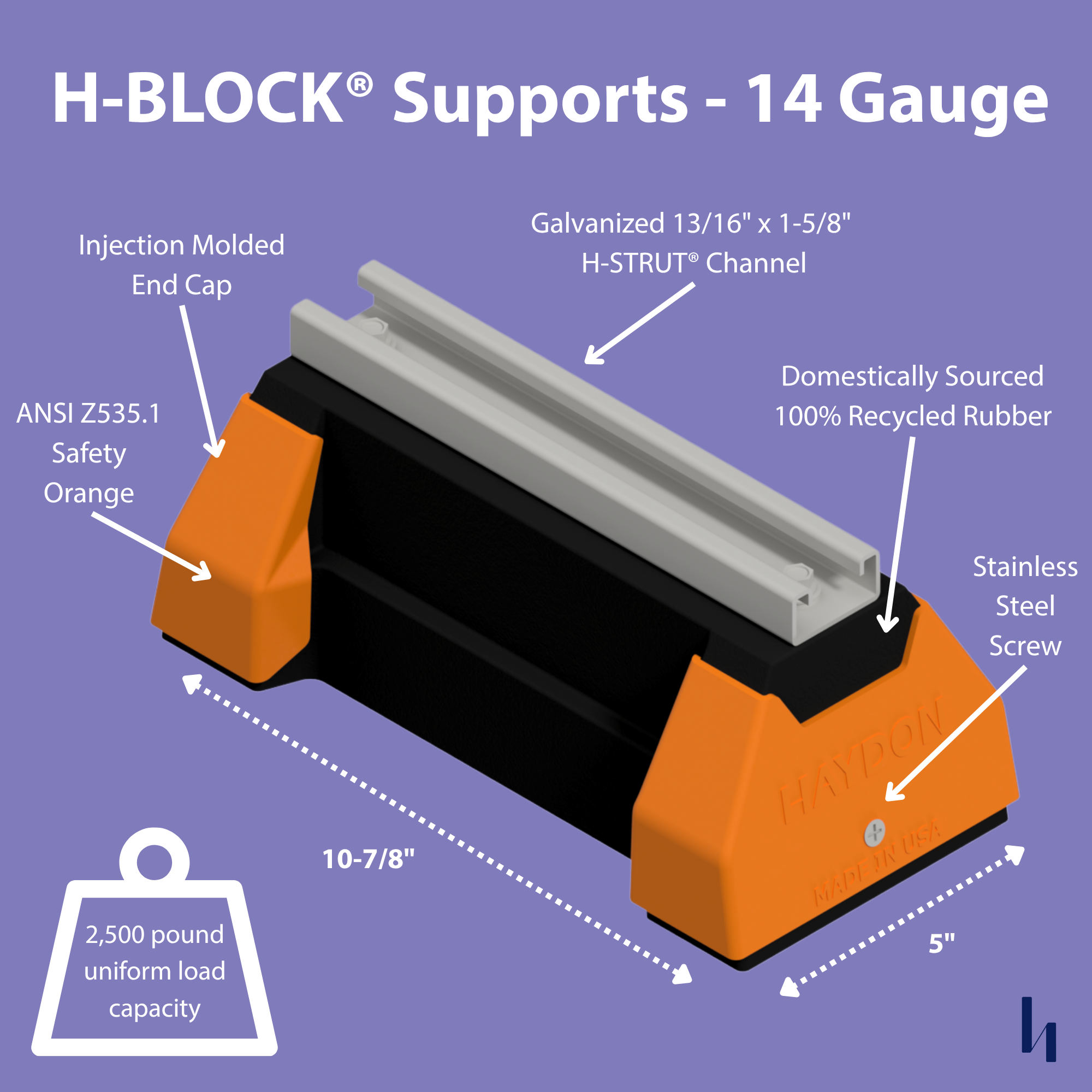

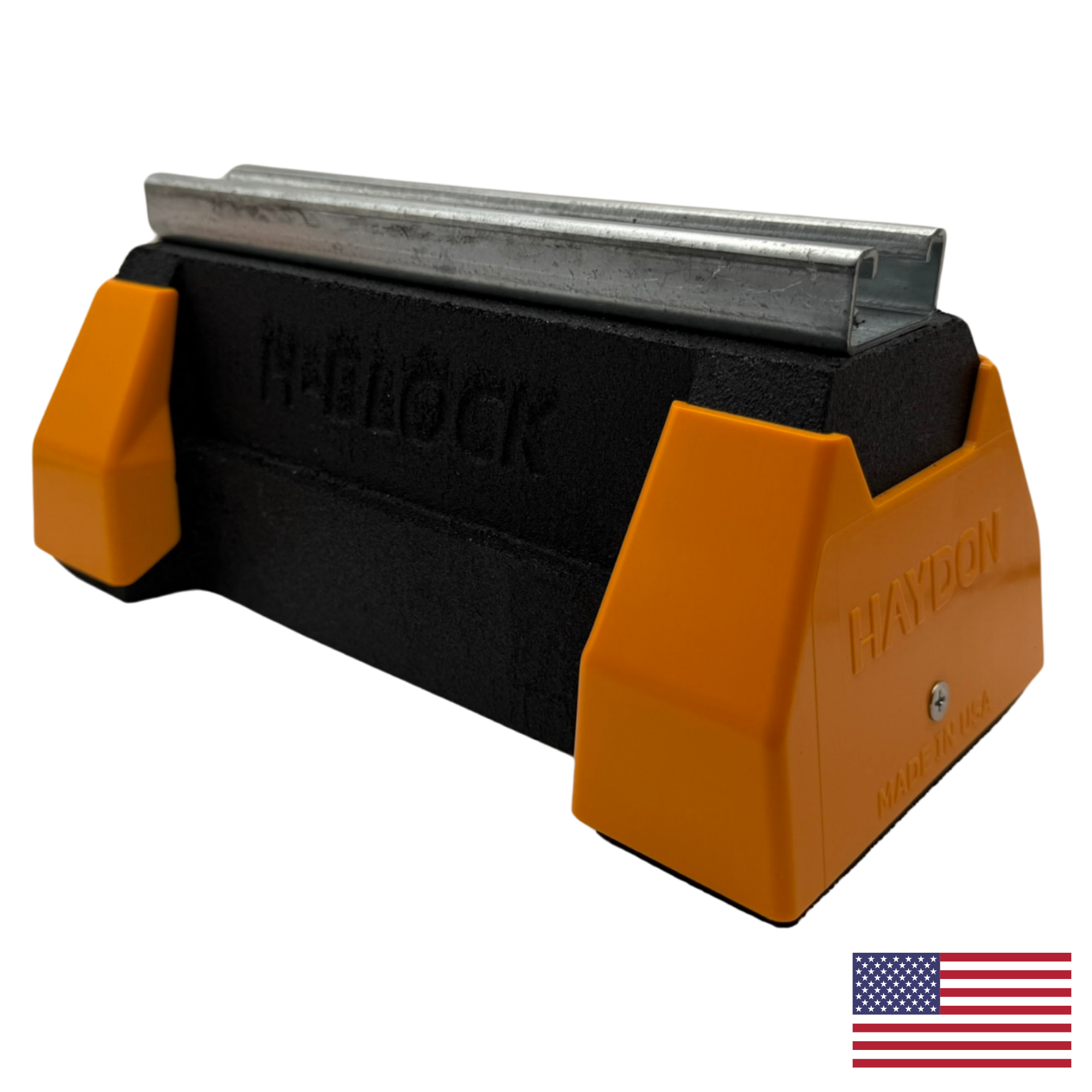

HBS Rooftop Support With 14 gauge channel 13/16" H-164 in Pre-Galvanized Steel

  • H-Block Standard comes with 14 gauge channel 13/16" H-164.
  • The HBS series is perfect for supporting natural gas and refrigeration systems, cable tray, electrical conduit, multiple lines, HVAC equipment and many other applications.
  • It provides a longer mounting surface with strut lengths up to 8'.
  • Standard strut mount pipe clamps are used to secure the pipes.
  • All rooftop support systems come pre-assembled for easy installation.
  • Compatible with most rooftop materials or other flat surfaces.
  • Finish: Pre-galvanized ASTM 653 steel
  • Other Finishes Available: Hot dipped galvanized ASTM A-123, Zinc trivalen chromium ASTM B-633-85, Powder coated spr-green ASTM B-117, and PVC coating 40ML thickness (available upon request only).
  • Material: Base is 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing.
  • See table 1 for additional models available.
  • Not recommended to be used with any pipe roller series.

Submittal Sheets_HBS Series with H-164 PG Request Quote

Specifications

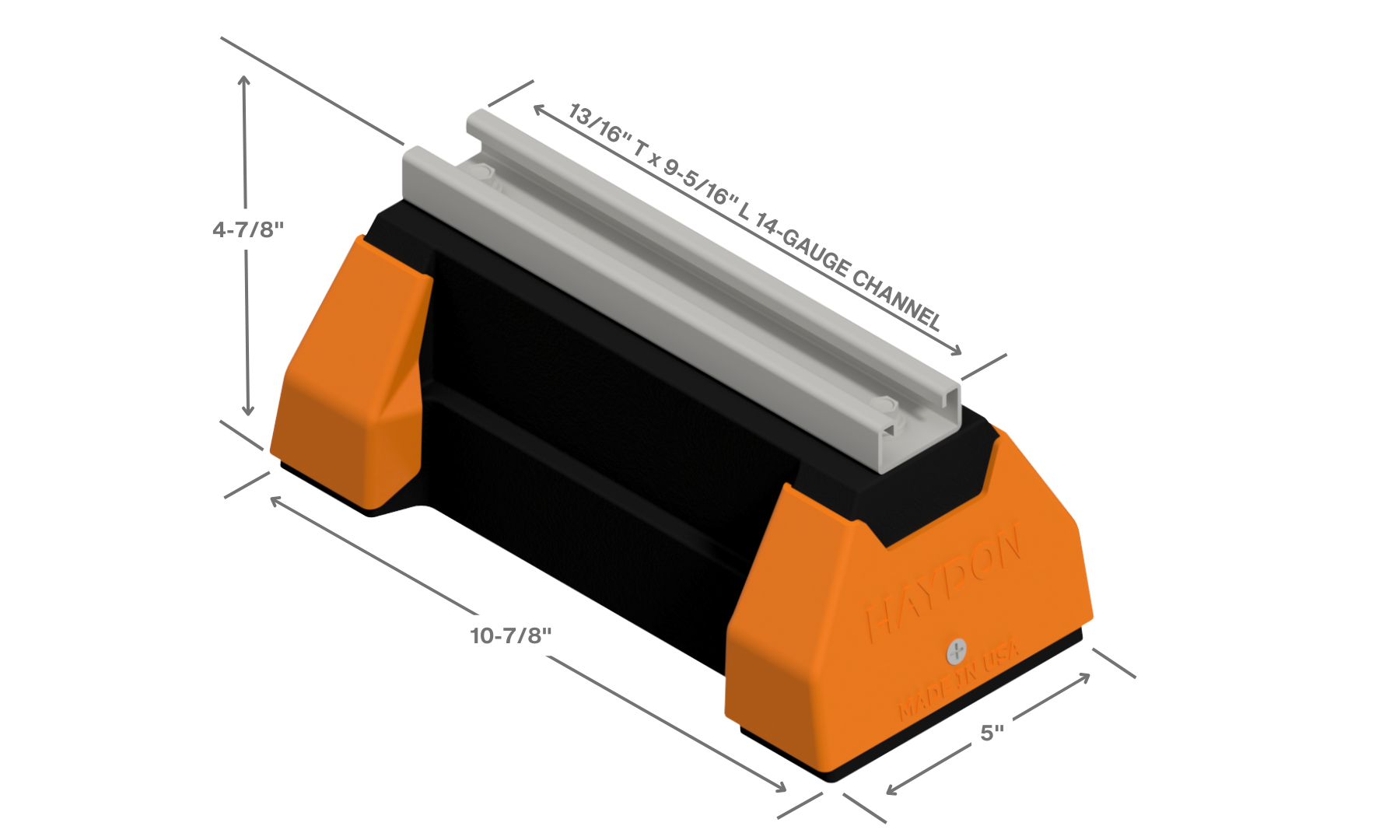

HeightWidthStrut LengthOverall LengthWeight (lbs.)# of Bases RequiredUniform Load Capacity (lbs)*Safety Factor
4-7/8" (124 mm)5" (127 mm)9.312" (237 mm)10-7/8" (276 mm)612,5002

* This load is only for the capacity of the components in this assembly. Consult roofing manufacturer or engineer for roof load capacity.

Certifications

  • LEEDS certifiable
  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)

Technical Information

Model # Part # Height Width Strut Length Overall Length Weight (lbs) # of Bases Uniform Load Capacity (lbs)* Safety Factor
HBS-24-H-164-PG 80013 4-7/8" (124mm) 5" (127mm) 22.375 (568 mm) 24 (610 mm) 11.56 lbs. 2 5,000 2.0
HBS-36-H-164-PG 80014 4-7/8" (124mm) 5" (127mm) 34.375 (873 mm) 36 (914 mm) 17.41 lbs. 3 7,500 2.0
HBS-48-H-164-PG 80015 4-7/8" (124mm) 5" (127mm) 46.375 (1178 mm) 48 (1219 mm) 23.25 lbs. 4 10,000 2.0
