SN Stud Nut

SN Stud Nut

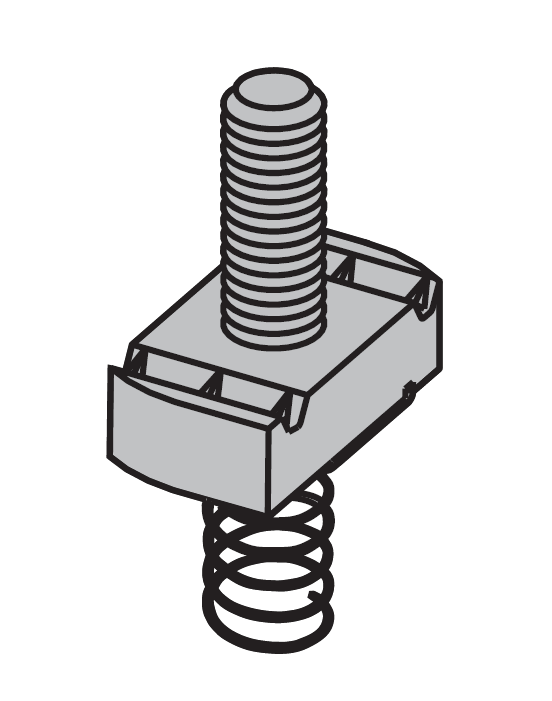

H-STRUT Threaded Fastener Stud Nut With RS Spring are designed with specially formed teeth in the parallel channel recesses to grip the returned lip of the channel. The shearing action of the teeth assures positive locking of the H-STRUT channels to the fittings.

Submittal Sheets_Stud Nut with RS Spring Request Quote

Material

H-STRUT Threaded Fastener Stud Nut With RS Spring are manufactured from mild steel bars, and are case hardened to a depth of 0.003" to 0.005" after machining, conforming to ASTM A-576 GR1015. Selected sizes also available in Stainless Steel.

Finish

All H-STRUT Grip Lock Nuts and Hardware have an electro-galvanized finish (ASTM B-633), unless otherwise noted.

Ordering

On the H-STRUT Grip Lock Nuts, consult the selection table which shows the correct locking nut for each size channel. On the Hardware please specify the diameter or size required, and length where applicable.

Technical Information

Part No. Size Std. Pkg. Wt./100 Pcs.
SN 1/4" x 1" 100 8.1
SN 1/4" x 1-1/4" 100 8.3
SN 1/4" x 1-1/2" 100 8.6
SN 1/4" x 2" 100 9.1
SN 3/8" x 1" 100 13
SN 3/8" x 1-1/4" 100 14
SN 3/8" x 1-1/2" 100 14
SN 3/8" x 2" 100 15
SN 1/2" x 1" 100 15
SN 1/2" x 1-1/4" 100 16
SN 1/2" x 1-1/2" 100 17
SN 1/2" x 2" 100 19
