N-830 Series

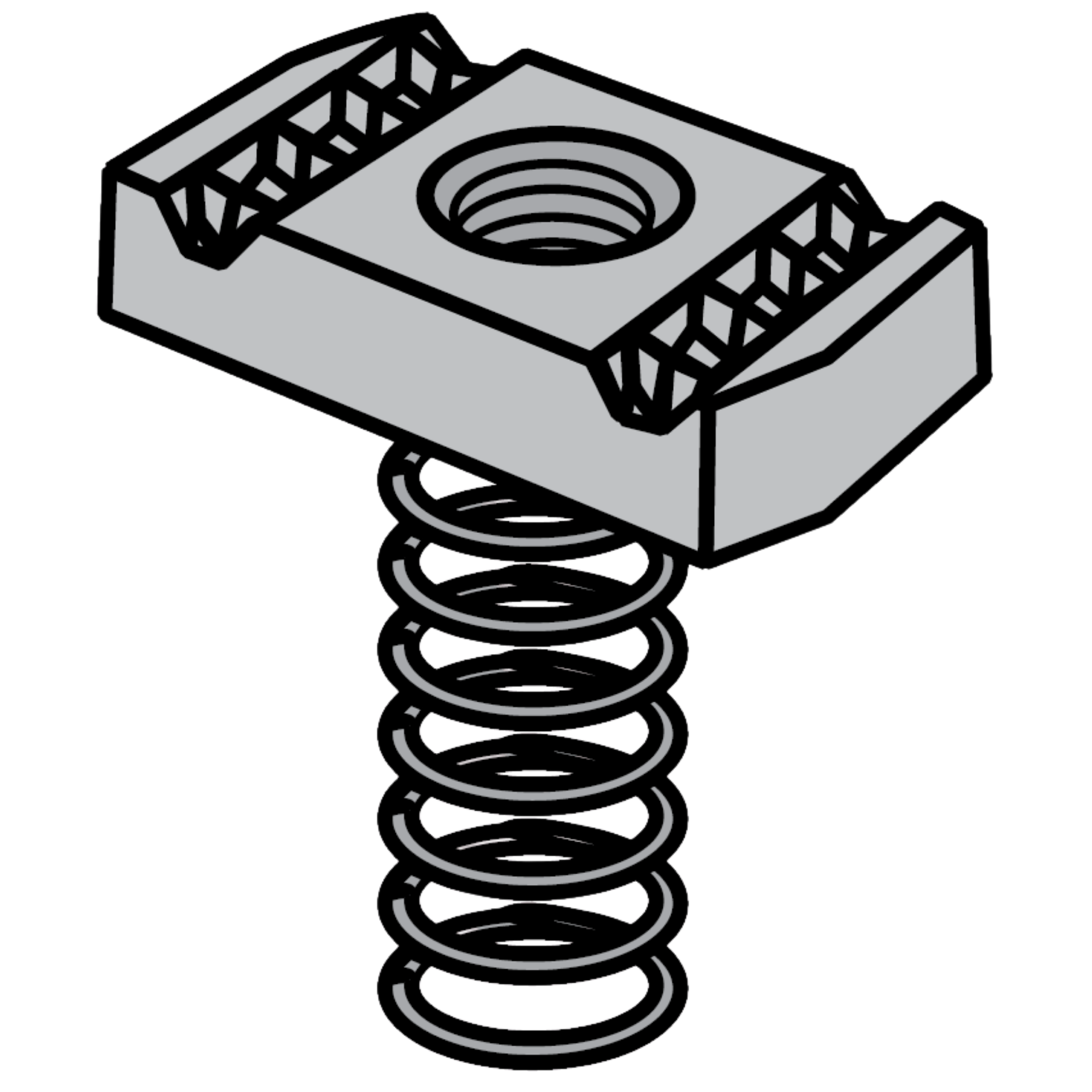

H-STRUT Grip Lock Nuts With Long Spring are designed with specially formed teeth in the parallel channel recesses to grip the returned lip of the channel. The shearing action of the teeth assures positive locking of the H-STRUT channels to the fittings.

Submittal Sheets_N-830 Request Quote

Material

H-STRUT Grip Lock Nuts With Long Spring are manufactured from mild steel bars, and are case hardened to a depth of 0.003" to 0.005" after machining, conforming to ASTM A-576 GR1015. Selected sizes also available in Stainless Steel.

Finish

All H-STRUT Grip Lock Nuts and Hardware have an electro-galvanized finish (ASTM B-633), unless otherwise noted.

Ordering

On the H-STRUT Grip Lock Nuts, consult the selection table which shows the correct locking nut for each size channel. On the Hardware please specify the diameter or size required, and length where applicable.

Technical Information

Cat. No.	Size	Thd.	Thk.	Wt./100 Pcs.	Channel
N-830	1/4"	20	1/4"	7	H-122, H-112
N-831	3/8"	16	3/8"	10	H-122, H-112
N-832	1/2"	13	3/8"	10	H-122, H-112
N-833	1/2"	13	1/2"	13	H-122, H-112
N-834	5/8"	11	7/16"	23	H-122, H-112
N-835	3/4"	10	7/16"	20	H-122, H-112
N-838	5/16"	18	3/8"	7	H-122, H-112

Submittal Sheets_N-830

N-830

H-STRUT: N830

UNISTRUT: P-5506-1420

POWERSTRUT: PSLS-1/4"

B-LINE: N-724

N-831

H-STRUT: N831

UNISTRUT: P-5508

POWERSTRUT: PSLS-3/8"

B-LINE: N-728

SUPERSTRUT: H100-3/8

N-832

H-STRUT: N832

POWERSTRUT: PSLS-1/2"

B-LINE: N-725

SUPERSTRUT: H100-1/2

N-833

H-STRUT: N833

UNISTRUT: P-5510

N-834

H-STRUT: N834

POWERSTRUT: PSLS-5/8"

B-LINE: N-755

SUPERSTRUT: H100-5/8

N-835

H-STRUT: N835

POWERSTRUT: PSLS-3/4"

B-LINE: N-775

N-838

H-STRUT: N838

UNISTRUT: P-5507

B-LINE: N-723
