N-810 Series

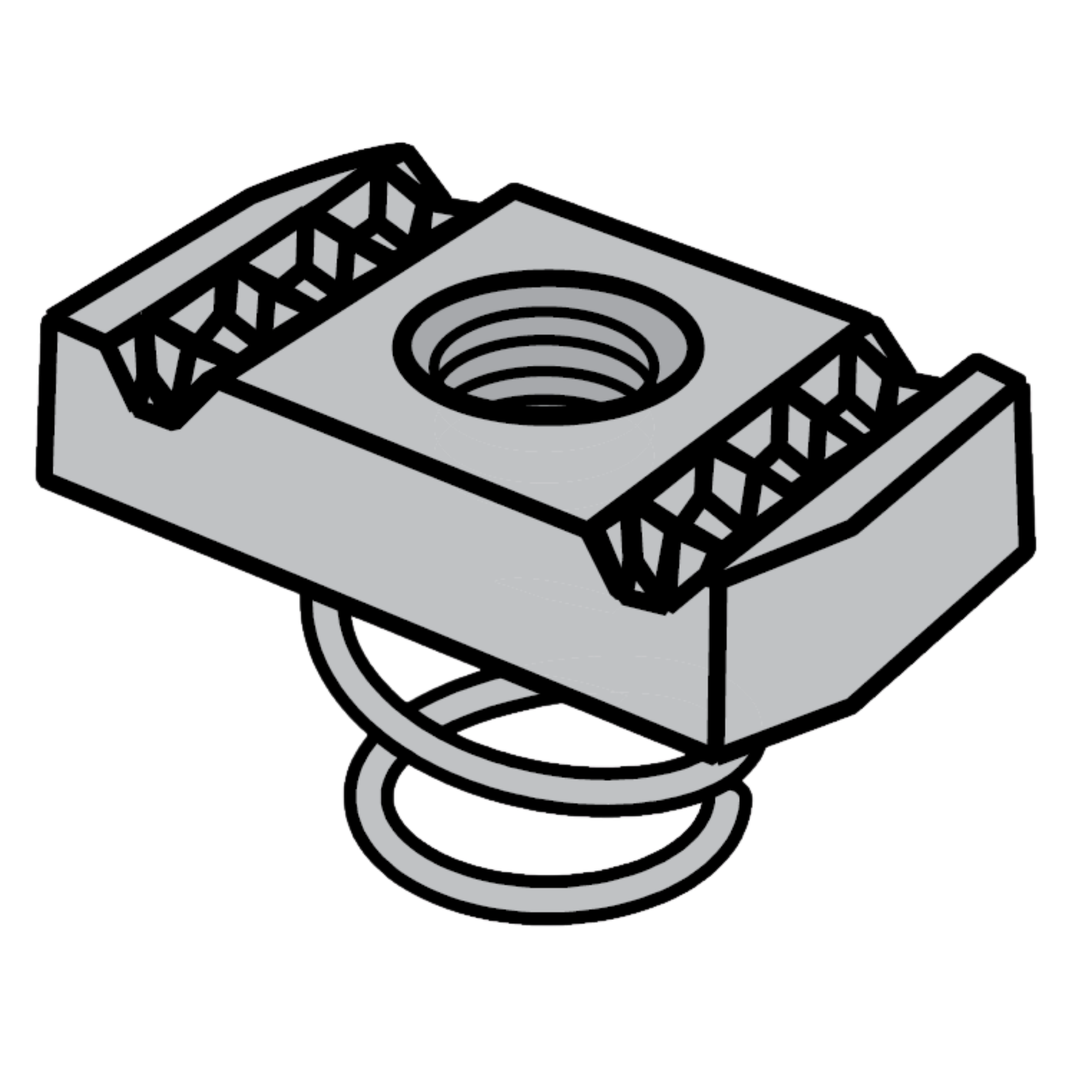

H-STRUT Grip Lock Nuts With Short Spring are designed with specially formed teeth in the parallel channel recesses to grip the returned lip of the channel. The shearing action of the teeth assures positive locking of the H-STRUT channels to the fittings.

Submittal Sheets_N-810 Request Quote

Material

H-STRUT Grip Lock Nuts With Short Spring are manufactured from mild steel bars, and are case hardened to a depth of 0.003" to 0.005" after machining, conforming to ASTM A-576 GR1015. Selected sizes also available in Stainless Steel.

Finish

All H-STRUT Grip Lock Nuts and Hardware have an electro-galvanized finish (ASTM B-633), unless otherwise noted.

Ordering

On the H-STRUT Grip Lock Nuts, consult the selection table which shows the correct locking nut for each size channel. On the Hardware please specify the diameter or size required, and length where applicable.

Technical Information

Cat. No.	Size	Thd.	Thk.	Wt./100 Pcs.	Channel
N-810	1/4"	20	1/4"	7	H-152, H-164, H-166-G, H-172
N-811	3/8"	16	3/8"	9	H-152, H-164, H-166-G, H-172
N-812	1/2"	13	3/8"	9	H-152, H-164, H-166-G, H-172
N-814	5/8"	11	3/8"	10	H-152, H-164, H-166-G, H-172
N-815	3/4"	10	3/8"	9	H-152, H-164, H-166-G, H-172
N-818	5/16"	18	3/8"	7	H-152, H-164, H-166-G, H-172

Submittal Sheets_N-810

N-810

H-STRUT: N810

UNISTRUT: P-4006-1420

POWERSTRUT: PSSS-1/4"

B-LINE: N-524

SUPERSTRUT: B1001/4

N-811

H-STRUT: N811

UNISTRUT: P-4008

POWERSTRUT: PSSS-3/8"

B-LINE: N-528

SUPERSTRUT: B100 3/8

N-812

H-STRUT: N812

UNISTRUT: P-4010

POWERSTRUT: PSSS-1/2"

B-LINE: N-525

SUPERSTRUT: B1001/2

N-814

H-STRUT: N814

UNISTRUT: P-4012-S

POWERSTRUT: PSSS-5/8"

B-LINE: N-555

N-815

H-STRUT: N815

UNISTRUT: P-4023-S

B-LINE: N-575

N-818

H-STRUT: N818

UNISTRUT: P-4007

POWERSTRUT: PSSS-5/16"

B-LINE: N-523

SUPERSTRUT: B100 5/16
