M-610

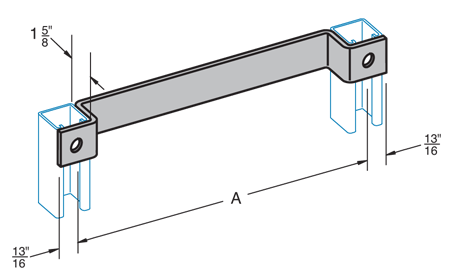

Ladder Rung Brace

H-STRUT General Fittings are designed to fit with all H-STRUT 1-5/8" wide channels. All H-STRUT fittings are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.

Sizes available:

  • 12" - Wt. 170#/100 pcs.
  • 15" - Wt. 202#/100 pcs.
  • 18" - Wt. 234#/100 pcs.

Submittal Sheets_M-610 Request Quote

Material

  • Hot Rolled Steel Sheet - ASTM A-1011
  • Cold Rolled Steel Sheet - ASTM A-1008
  • Stainless Steel-Type 304/316 - ASTM A-240
  • Aluminum Fitting - ASTM B-221

Finish

  • Electro Galvanized - ASTM B-633
  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating - Available Upon Request

M-610-1

H-STRUT: M6101

UNISTRUT: P-1201

B-LINE: B-411-12

M-610-2

H-STRUT: M6102

B-LINE: B-411-15

M-610-3

H-STRUT: M6103

B-LINE: B-411-18
