HBS-6-10-H-122-PG

HBS Rooftop Support With 12 gauge channel 2-7/16" H-122 in Pre-Galvanized Steel

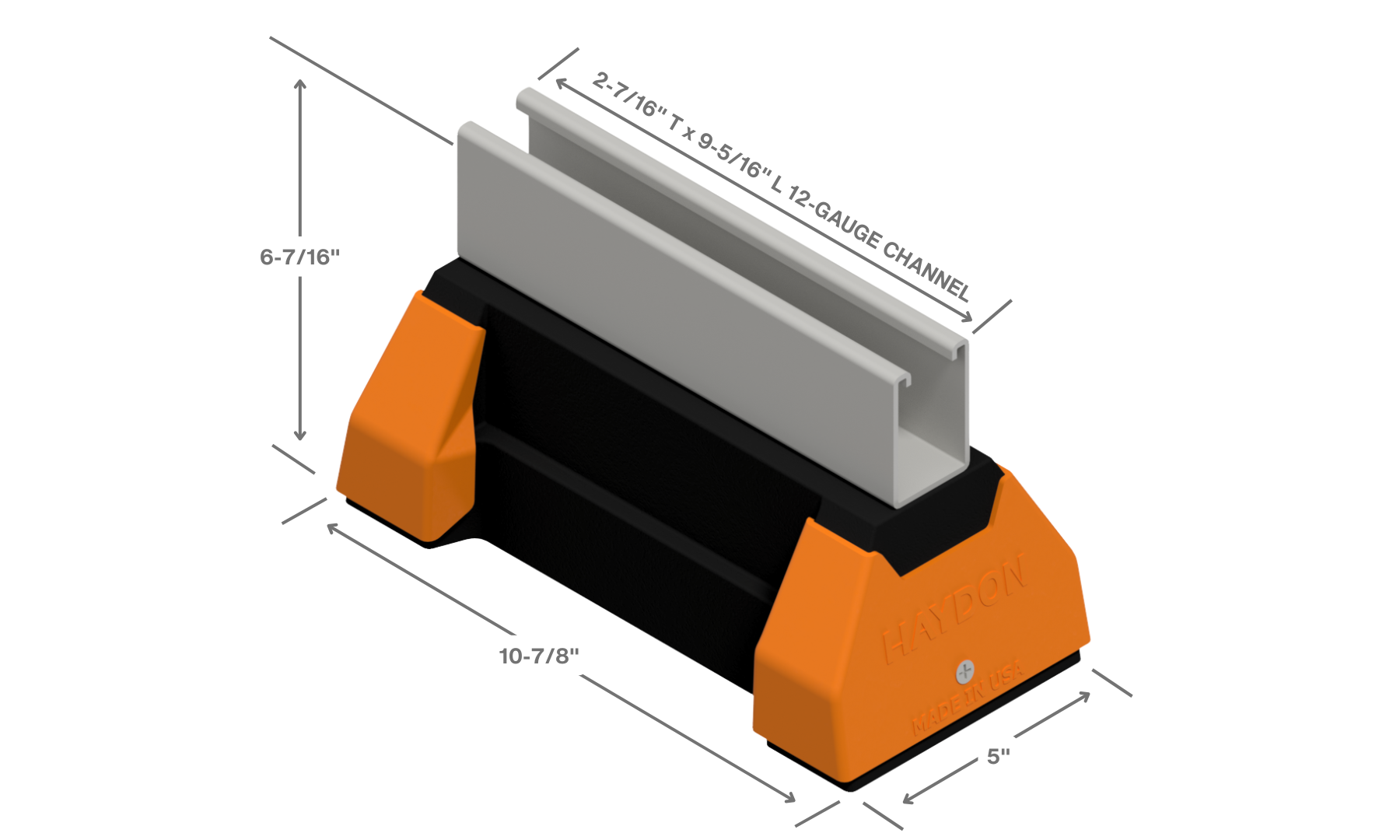

  • H-Block Standard 6 series comes with 12 guage channel 2-7/16" H-122.
  • The HBS-6 series is perfect for supporting natural gas and refrigeration systems, cable tray, electrical conduit, multiple lines, HVAC equipment and many other applications.
  • It provides a longer mounting surface with strut lengths up to 8'.
  • All rooftop support systems come pre-assembled for easy installation.
  • Compatible with most rooftop materials or other flat surfaces.
  • Finish: Pre-galvanized ASTM 653 steel
  • Other Finishes Available: Hot dipped galvanized ASTM A-123, Zinc trivalen chromium ASTM B-633-85, Powder coated spr-green ASTM B-117, and PVC coating 40ML thickness (available upon request only).
  • Material: Base is 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing.

Submittal Sheets_HBS-6 Series Request Quote

Specifications

Height Width Strut Length Overall Length Weight (lbs.) # of Bases Required Uniform Load Capacity (lbs)* Safety Factor
6-7/16" (165 mm) 5" (127 mm) 9.312" (237 mm) 10-7/8" (276 mm) 6.69 lbs. 1 2,500 2.0

* This load is only for the capacity of the components in this assembly. Consult roofing manufacturer or engineer for roof load capacity.

Certifications

  • LEEDS certifiable
  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)

Technical Information

Model # Part # Height Width Strut Length Overall Length Weight (lbs) # of Bases Uniform Load Capacity (lbs)* Safety Factor
HBS-6-24-H-122-PG 80062 6-7/16" (165mm) 5" (127mm) 22.375 (568mm) 24" (610mm) 14.13 lbs. 2 5,000 2.0
HBS-6-36-H-122-PG 80063 5-5/8" (165mm) 5" (127mm) 34.375 (873mm) 36" (914mm) 21.35 lbs. 3 7,500 2.0
HBS-6-48-H-122-PG 80064 5-5/8" (165mm) 5" (127mm) 46.375 (1178mm) 48" (1219mm) 28.58 lbs. 4 10,000 2.0
