HBM-5-H-164

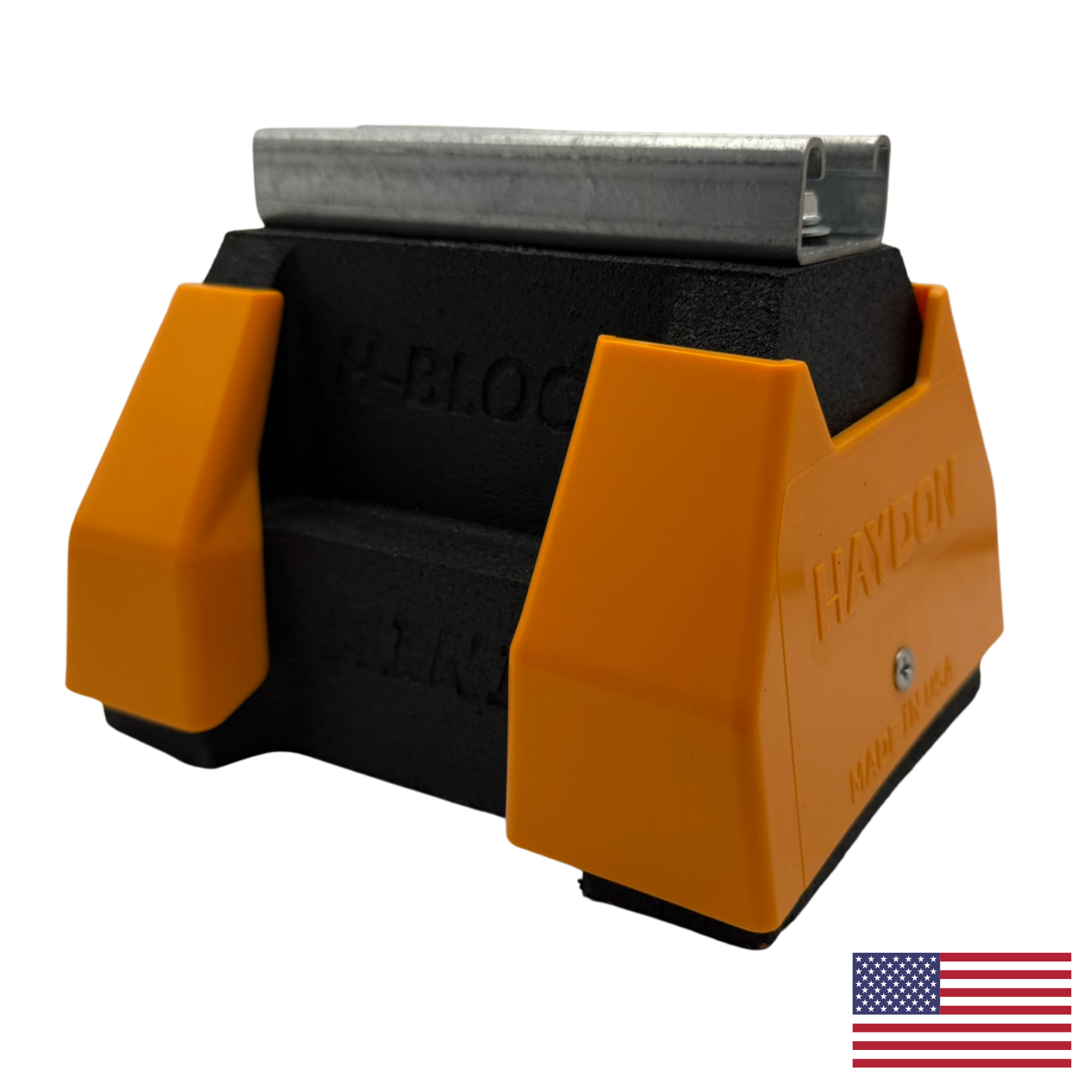

HBM Rooftop Support With 14 Gauge Channel 13/16" H-164 in Pre-Galvanized Steel

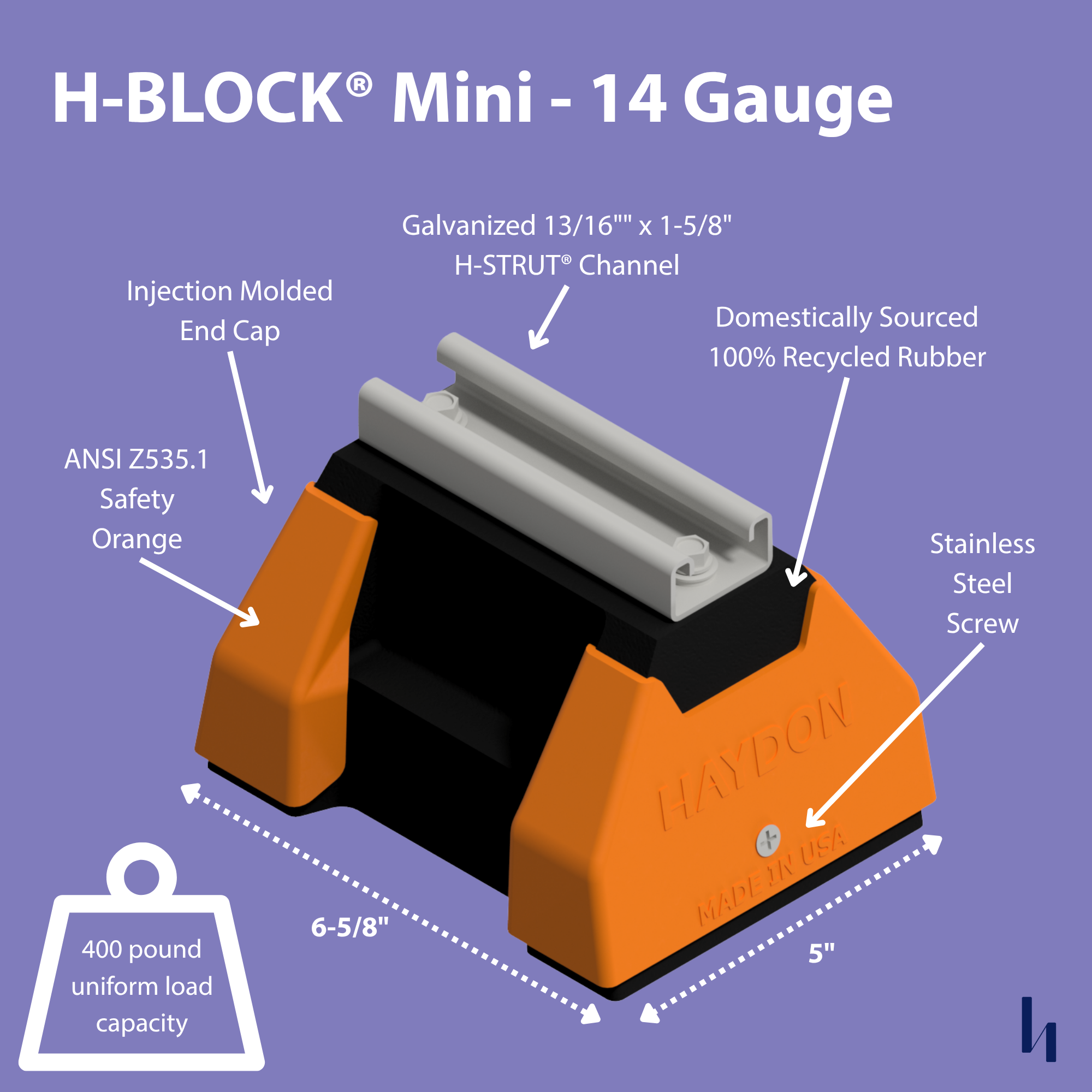

  • H-Block Mini comes with 13/16" H-164 14 gauge channel.
  • The H-Block Mini series is specifically designed for single pipe supporting applications.
  • It's a cost-effective method for mounting and supporting single pipe applications without losing strength and integrity.
  • -All rooftop support systems come pre-assembled for easy installation.
  • Compatible with most rooftop materials or other flat surfaces.
  • Finish: Pre-galvanized ASTM 653 steel
  • Other Finishes Available: Hot dipped galvanized ASTM A-123, Zinc trivalen chromium ASTM B-633-85, Powder coated spr-green ASTM B-117, and PVC coating 40ML thickness (available upon request only).
  • Material: 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing
  • Not recommended to be used with any pipe roller series.

Submittal Sheets_HBM-5-H-164-PG Request Quote

Specifications

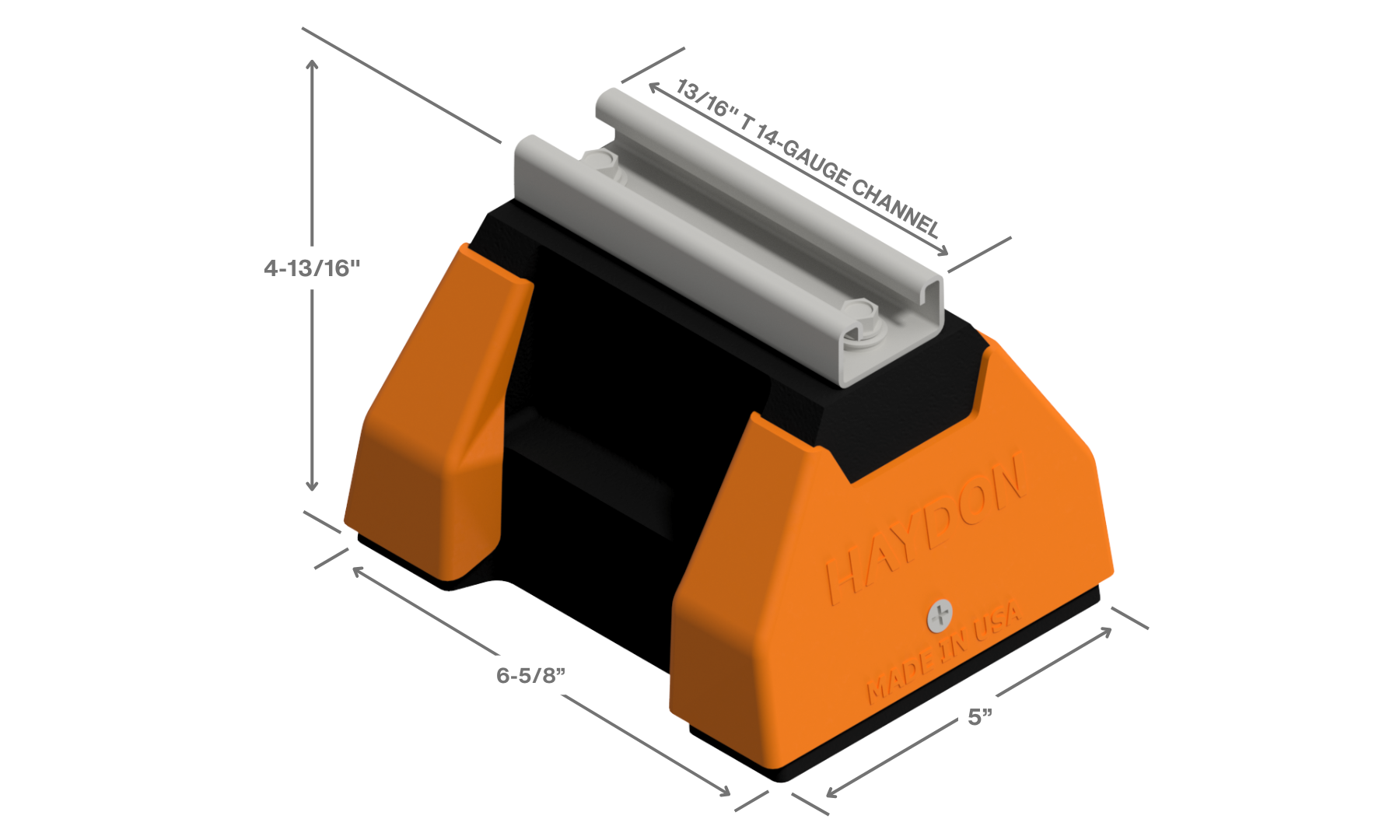

Overall Height Width Base Length Weight (lbs) Uniform Load Capacity (lbs)* Safety Factor
4-13/16" (122 mm) 5" (127 mm) 6-5/8" (168 mm) 2.9 400 2.0

* This load is only for the capacity of the components in this assembly. Consult roofing manufacturer or engineer for roof load capacity.

Certifications

  • LEEDS certifiable
  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)
