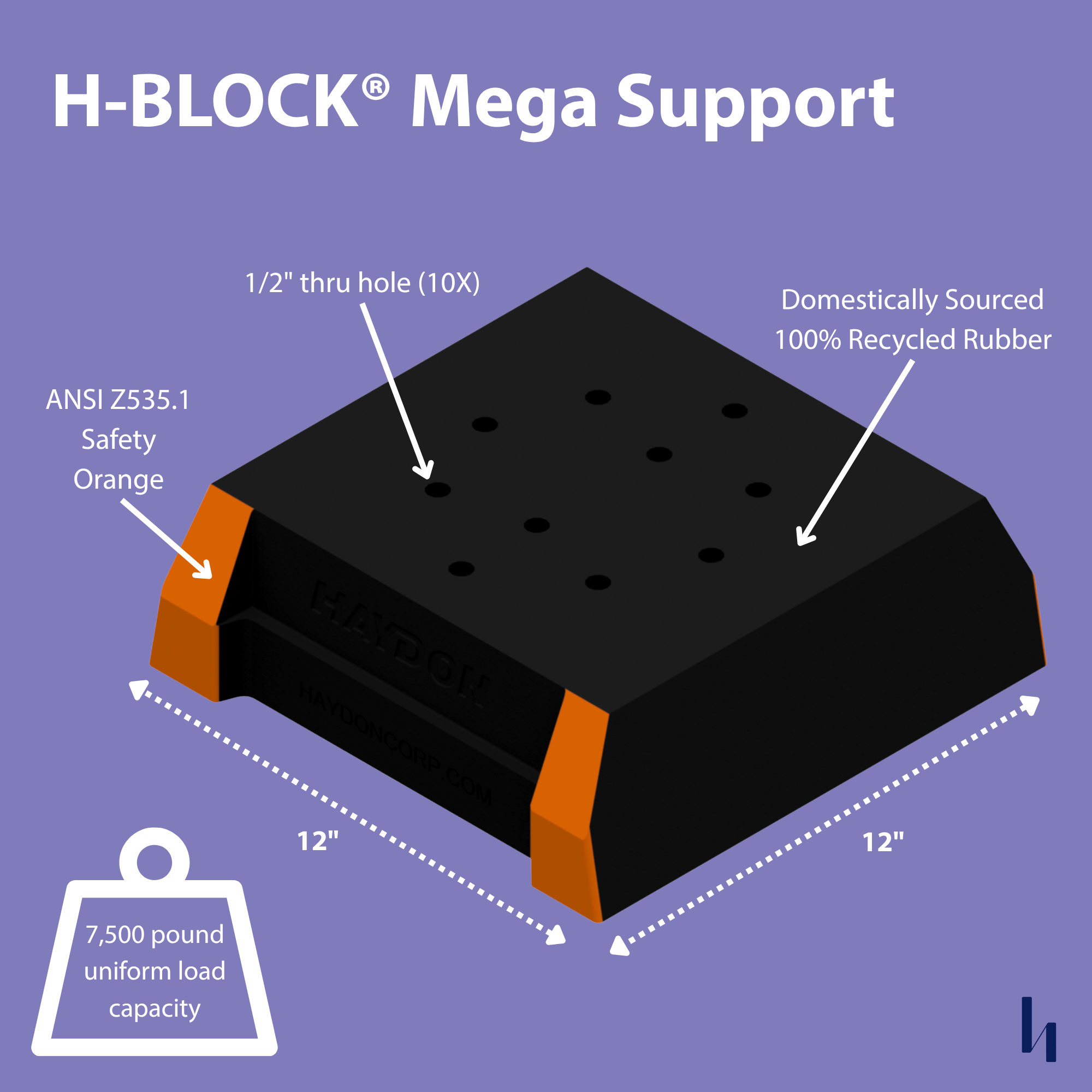

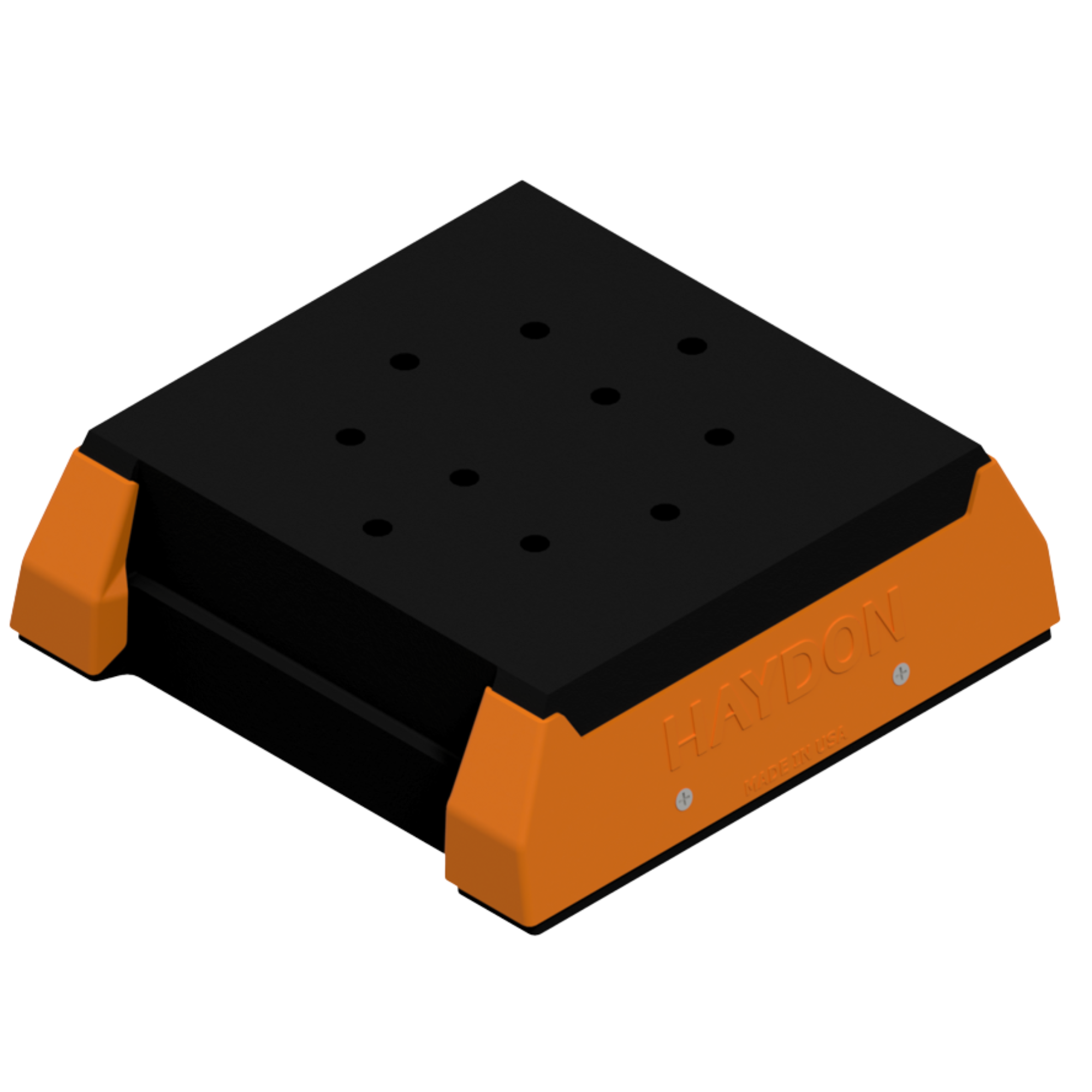

HB Mega Base

Rooftop Support H-Block Mega Base Only

  • H-Block Mega base only
  • The HB-Mega series is suitable for installations on all types of roofing surfaces and on ground applications and can be used as a curb (sleeper) replacement.
  • The HB-Mega series can support natural gas, refrigeration, light to heavier pipe hanger support systems, and adjustable and fixed duct support systems.
  • Compatible with most rooftop materials or other flat surfaces.
  • Material: 100% recycled rubber tires
  • UV resistant
  • Dampens vibrations
  • High visibility safety corners coated with ANSI orange #2535.1-1998
  • Resistant to freeze and thaw (ASTM D1171 modified)
  • ASTM D575 medthod B-modified compression/deflection testing

HB-MEGA-BASE ONLY SUBMITTAL SHEET Request Quote

Specifications

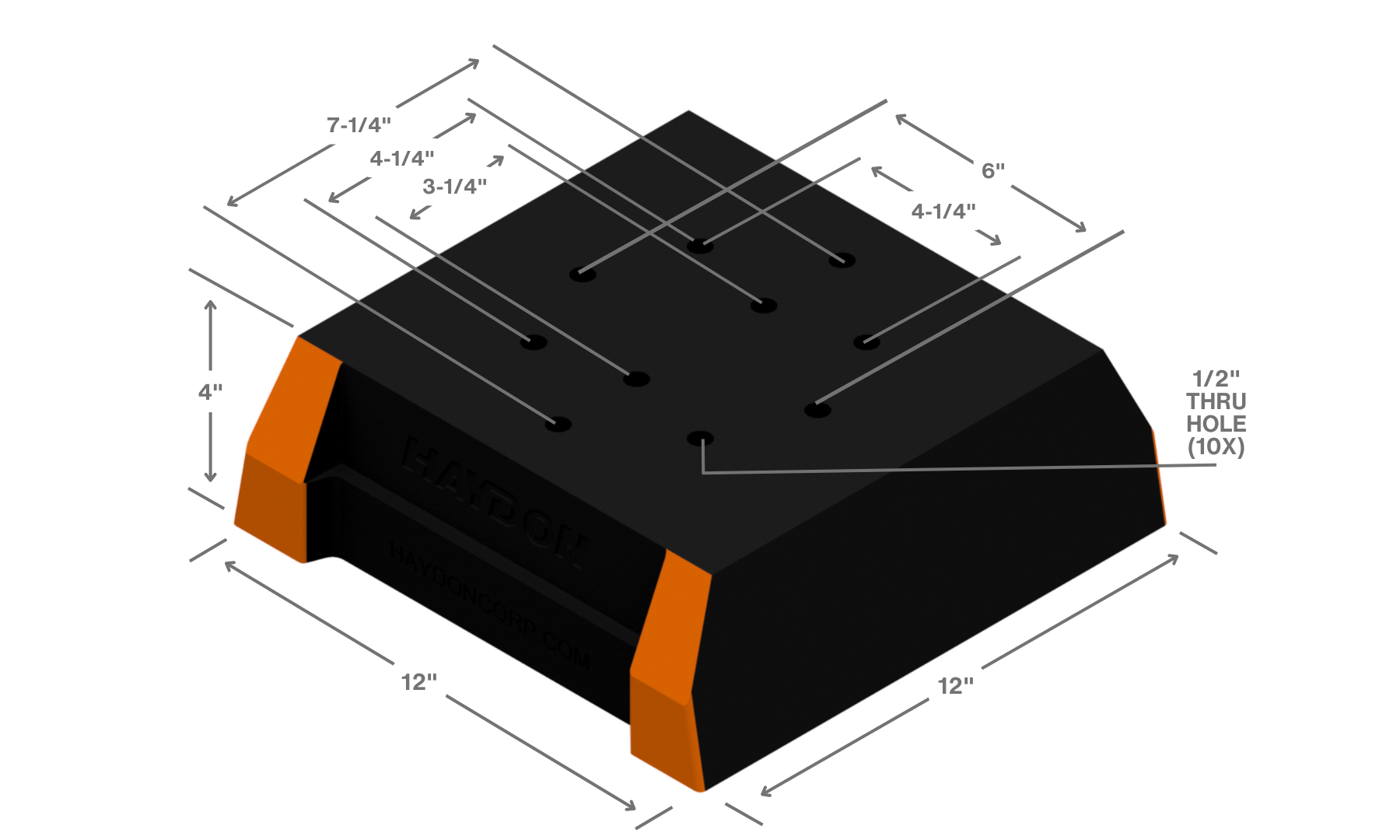

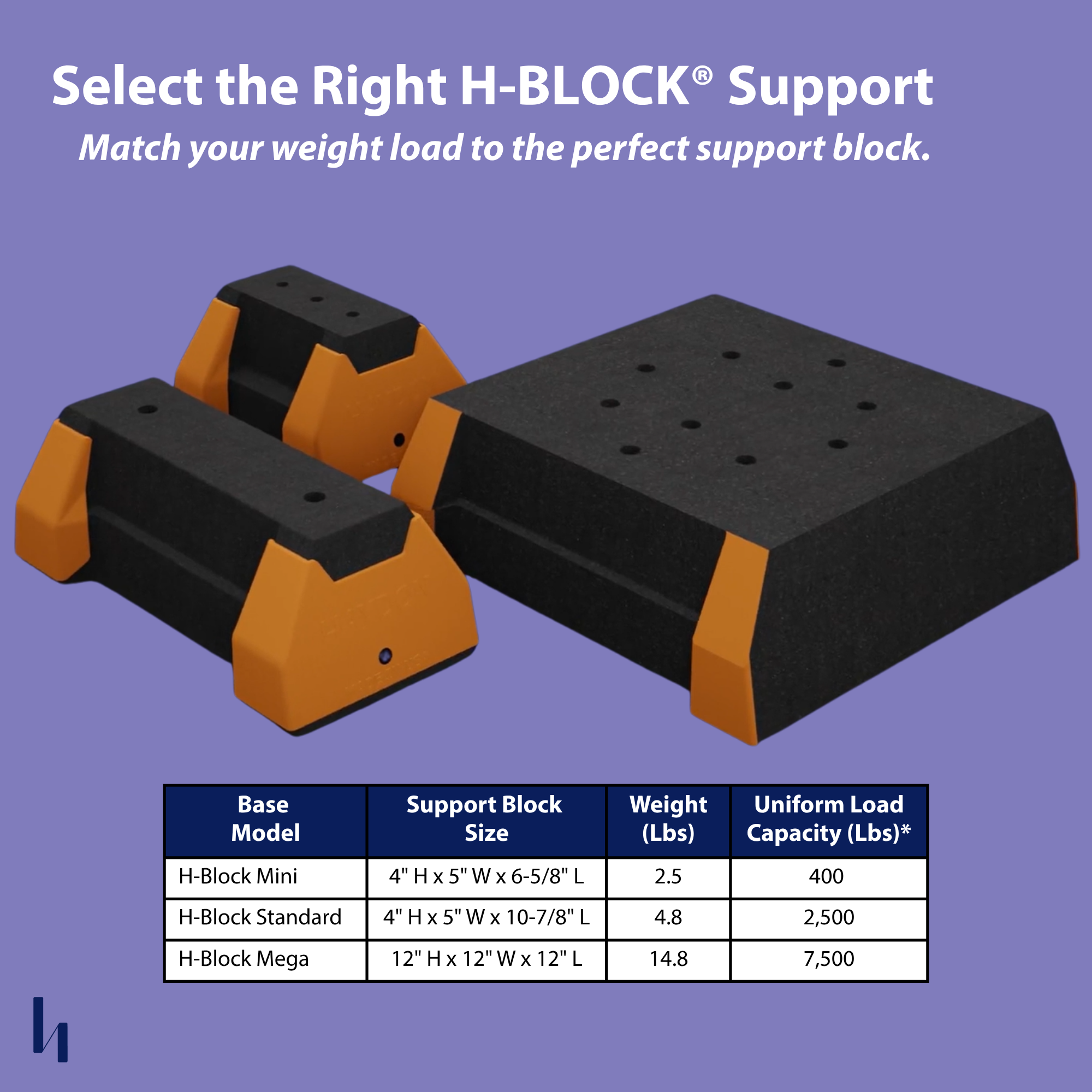

Base Height Width Base Length Weight (lbs) Uniform Load Capacity (lbs)* Safety Factor Square Inches
4" (101mm) 12" (305mm) 12" (305mm) 14.8 7,500 2.0 90

* This load is only for the capacity of the components in this assembly. Consult roofing manufacturer or engineer for roof load capacity.

Certifications

  • LEEDS certifiable

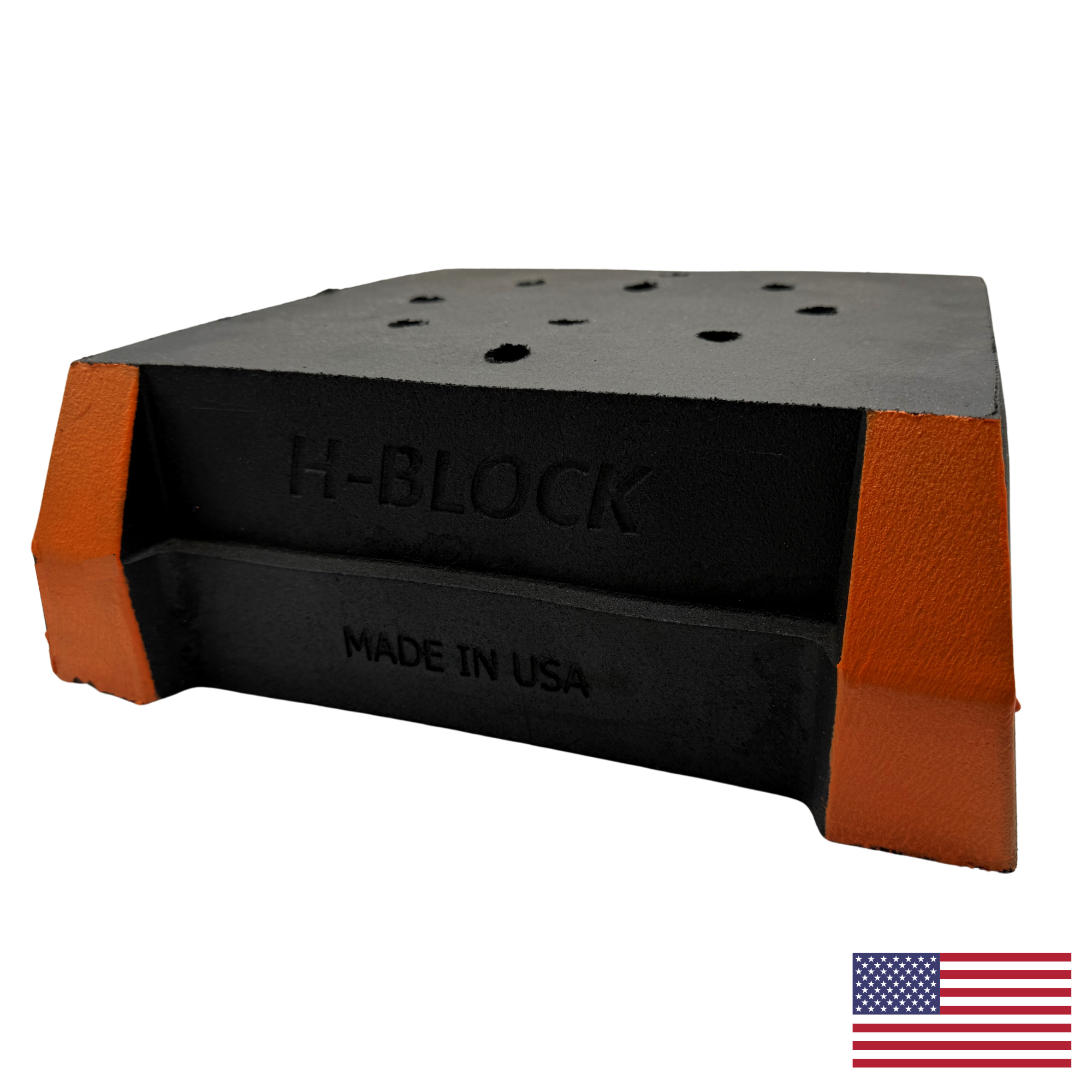

  • Meets the Buy American Act
  • American Reinvestment Recovery Act (A.R.R.A.)
