H-172

H-172 Channel

H-172 strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross section of uniform dimensions within a tolerance of plus or minus 0.015", on outside dimensions.

  • 12-Gauge Channel

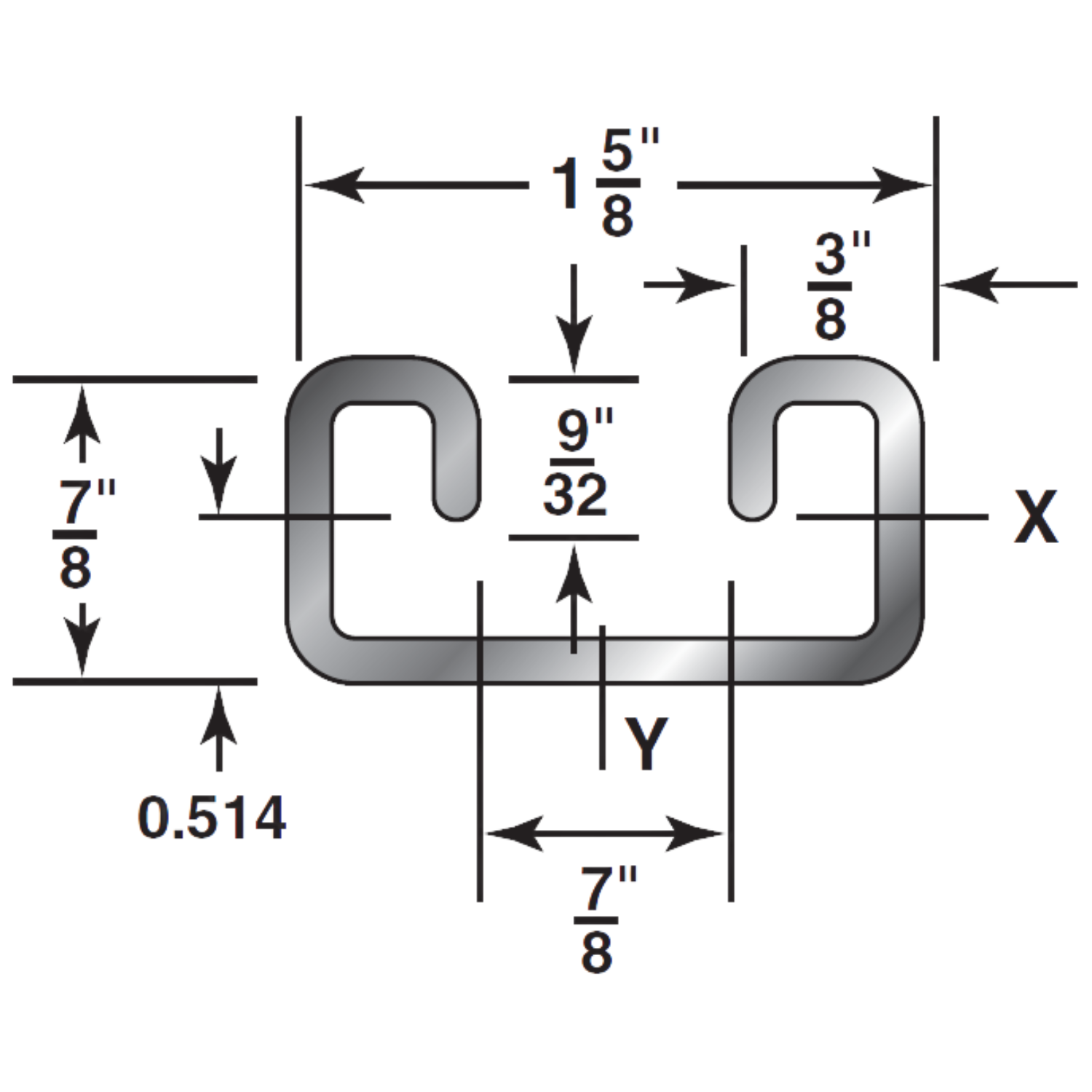

  • 7/8" X 1-5/8"
  • wt./100 ft. - 139#

Submittal Sheets_H-172 Request Quote

Materials

H-172 strut channels are produced from prime structural steel covered by the following specifications.

  • Pre-Galvanized Steel - ASTM A-653
  • Plain Steel - ASTM A-1011-04-SS
  • Aluminum (Type 6063T6) - ASTM B-221
  • Stainless Steel (Type 304 & 316) - ASTM A-240
  • Other materials and specifications available on request.

Finishes

All H-172 strut channels are stocked in pre-galvanized and powder coated Supr-Green. Some sizes are stocked in zinc trivalent chromium, PVC or hot dipped galvanized.

  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating 40 ML Thickness - Available Upon Request

Loading Data

  1. When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
  2. When calculating beam and column loads for aluminum, multiply by 33%.
  3. See Table 1 for additional technical data.

Notes

  • Other materials, finishes, lengths and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-172 strut channels are produced and stocked in 10' and 20' lengths with a tolerance of ± 1/8".

  • Other lengths are available upon request.
Span or Unbraced Height(in) Static Beam Load (X-X Axis) Max. Allowable Load at Slot Face(lbs) Column Loading Data
Max Allowable Uniform Load(lbs) Deflection at Uniform Load(in) Uniform Load at Deflection Max. Column Load Applied at C.G.
Span/180 Deflection(lbs) Span/240 Deflection(lbs) Span/360 Deflection(lbs) Weight of Channel(lbs) k=.65(lbs) k=.80(lbs) k=1.0(lbs) k=1.2(lbs)
12 1,280 0.03 1,280 1,280 1,280 1.4 2,550 8,760 8,550 8,250 7,940
18 860 0.06 860 860 760 2.1 2,410 8,280 7,940 7,490 6,950
24 640 0.1 640 640 430 2.8 2,260 7,780 7,350 6,500 5,560
30 510 0.16 510 410 270 3.5 2,060 7,320 6,500 5,330 4,180
36 430 0.23 380 280 190 4.2 1,860 6,620 5,560 4,180 2,960
42 370 0.31 280 210 140 4.9 1,660 5,860 4,630 3,140 2,180
48 320 0.4 210 160 110 5.6 1,460 5,090 3,740 2,400 1,670
60 260 0.63 140 100 70 7 1,130 3,640 2,400 1,540 **
72 210 0.9 90 70 50 8.3 890 2,530 1,670
 ** **
84 180 1.23 70 50 30 9.7 ** 1,860 ** ** **
96 160 1.61 50 40 30 11.1 ** 1,420 ** ** **
108 140 2.04 40 30 20 12.5 ** ** ** ** **
120 130 2.51 30 30 20 13.9 ** ** ** ** **
144 110 3.62 20 20 NR 16.7 ** ** ** ** **
168 90 4.92 20 NR NR 19.5 ** ** ** ** **
180 90 5.65 NR NR NR 20.9 ** ** ** ** **
192 80 6.43 NR NR NR 22.2 ** ** ** ** **
216 70 8.14 NR NR NR 25 ** ** ** ** **
240 60 10.05 NR NR NR 27.8 ** ** ** ** **

# Bearing Load may limit load | ** Not recommended - KL/r exceeds 200

Notes:

  • The beam capacities shown above include the weight of the strut beam. The beam weight must be subtracted from these capacities to arrive at the net beam capacity.
  • Allowable beam loads are based on a uniformly loaded, simply supported beam. For capacities of a beam loaded at midspan at a single point, multiply the beam capacity by 50% and deflection by 80%.
  • The above chart shows beam capacities for strut without holes. For strut with holes, multiply by the following:
    OS by 88%, OS3 by 90%, RS (9⁄16 holes) by 88%, RS-MOD (3⁄4 holes) by 85%, KO by 82%, OS2.5 by 86%

H-172

H-STRUT: H172

UNISTRUT: P-3300

H-172-A

H-STRUT: H172-A

UNISTRUT: P-3301

H-172-KO

H-STRUT: H172-KO

UNISTRUT: P-3300-6KO

H-172-OS

H-STRUT: H172-OS

UNISTRUT: P-3300-T

H-172-OS3

H-STRUT: H172-OS3

UNISTRUT: P-3300-SL

H-172-RS

H-STRUT: H172-RS

UNISTRUT: P-3300-HS
