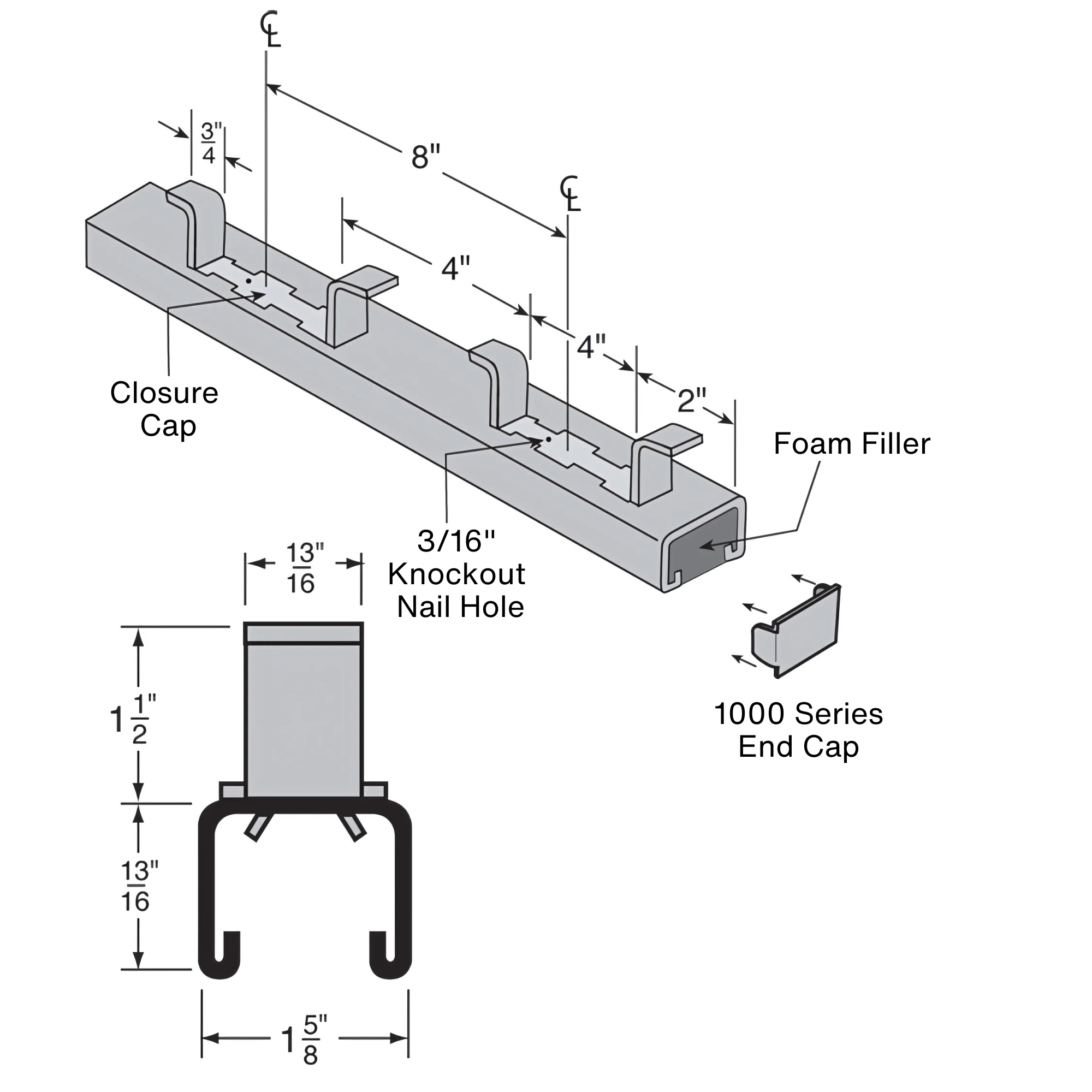

13/16" x 1 5/8" x 14 gauge Concrete Insert

Any cut length that is not divisible by 8" is only provided as a point of reference for loads.

Submittal Sheets_H-164-IN Request Quote

Materials

H-164-IN concrete inserts and accessories are produced from prime steel covering the following specifications:

  • Hot Rolled Carbon Steel - ASTM A-1011-04-SS
  • Cold Rolled Carbon Steel - ASTM A-1008
  • Stainless Steel - Type 304/316 - ASTM A-240

Finishes

H-164-IN concrete inserts and accessories are stocked in the following finishes:

  • Pre-Galvanized - ASTM A-653-G90
  • Hot Dipped Galvanized - ASTM A-123
  • Electro Galvanized - ASTM B-633

Loading Data

  1. Loading data was calculated in a concrete mixture which was proportioned so that the compression strength of the concrete was 2,500 to 3,000 pounds per square inch and that the load is dependent on the surrounding concrete.
  2. Tests were performed with a safety factor of 3, and in accordance with the MFMA Specifications.

Notes:

  • Any cut length that is not divisible by 8" is only provided as a point of reference for loads.

Technical Information

  • H-164-IN concrete inserts are produced and stocked in 10 and 20 foot lengths.
  • Inserts should be secured to forms at 16" intervals.
  • Other lengths are available upon request.
Length(in) Weight/100 pcs. Max. Allowable Lbs. Load Per 12” Section
3 30 450
4 40 600
6 60 850
8 80 1,100
12 121 No more than 1,700 per 12" section
18 181 No more than 1,700 per 12" section
24 242 No more than 1,700 per 12" section
30 302 No more than 1,700 per 12" section
36 363 No more than 1,700 per 12" section
48 484 No more than 1,700 per 12" section
60 605 No more than 1,700 per 12" section
72 726 No more than 1,700 per 12" section
84 847 No more than 1,700 per 12" section
96 968 No more than 1,700 per 12" section
108 1,089 No more than 1,700 per 12" section
120 1,210 No more than 1,700 per 12" section
240 2,420 No more than 1,700 per 12" section

Notes:

  • When ordering, please indicate finish and either foam filler, or plastic closure.
  • Any cut length that is not divisible by 8" is only provided as a point of reference for loads.
