H-164

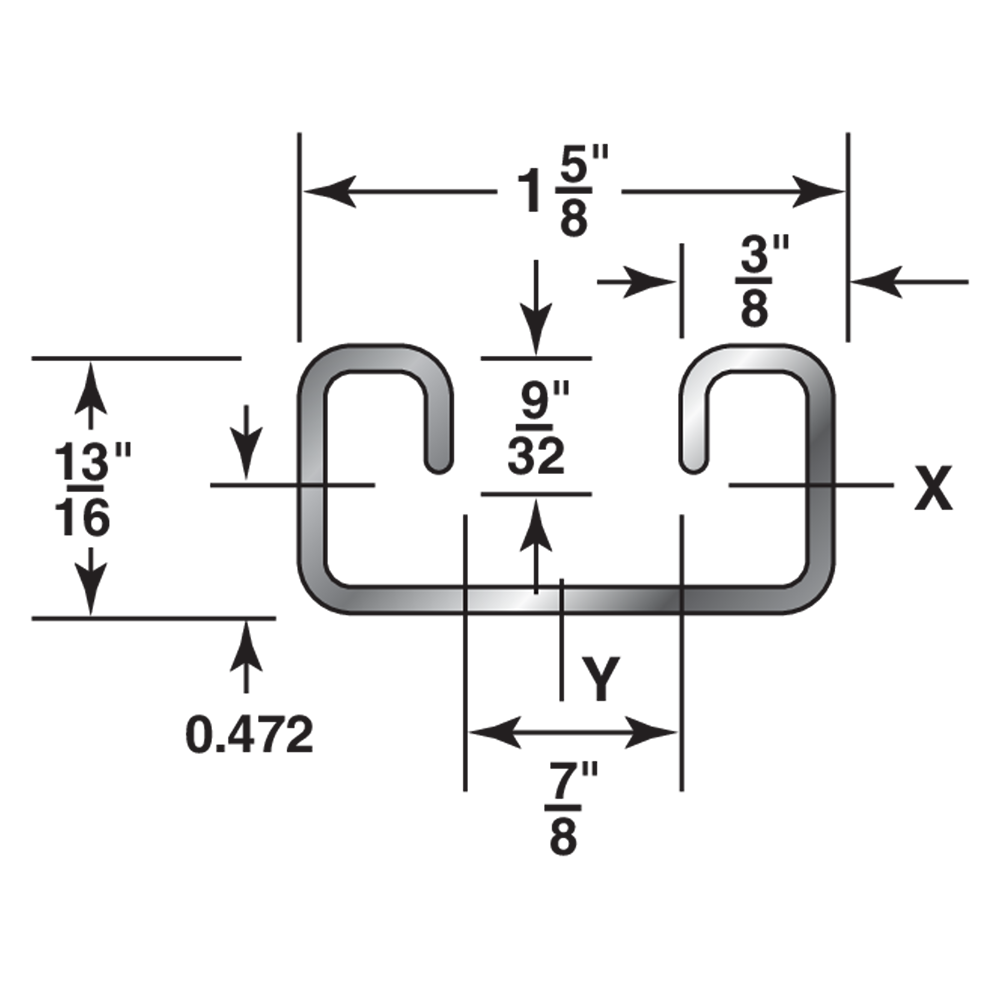

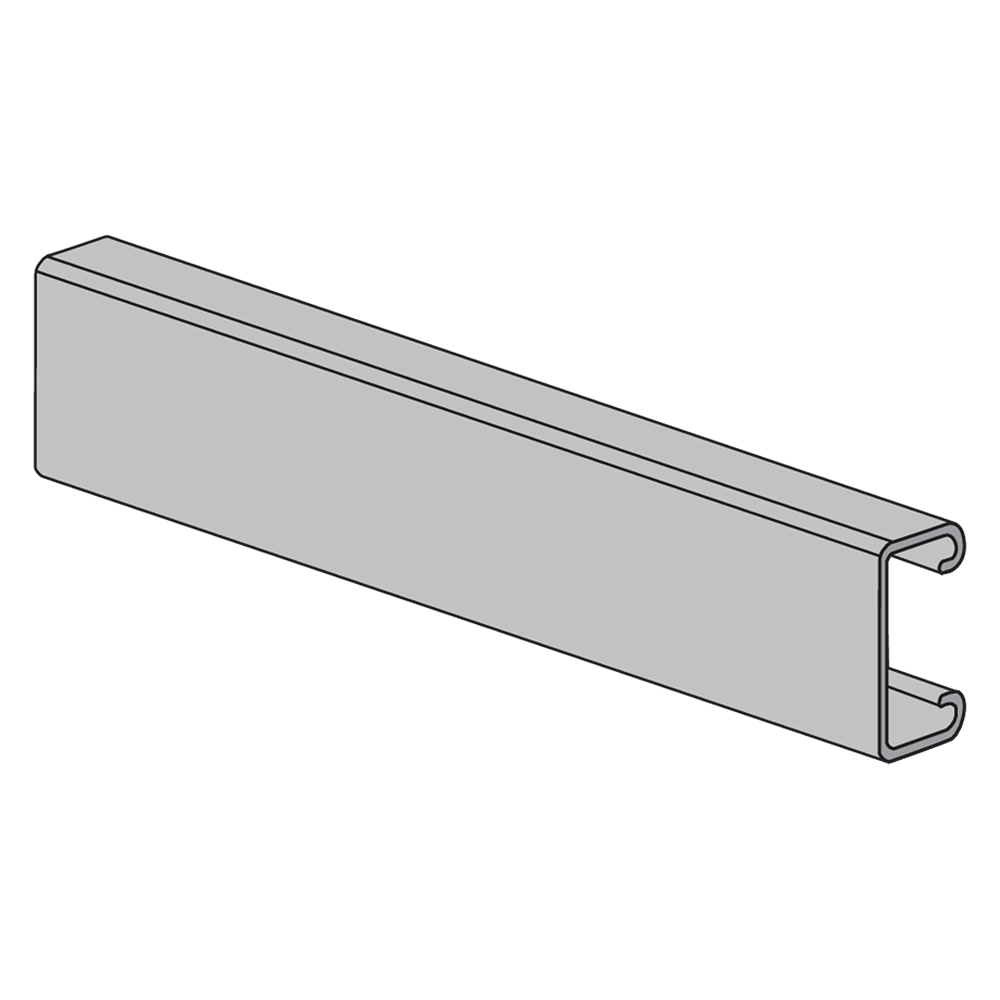

H-164 Channel

H-164 strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross section of uniform dimensions within a tolerance of plus or minus 0.015", on outside dimensions.

  • 14-Gauge Channel
  • 13/16" X 1-5/8"
  • wt./100 ft. - 103#

Submittal Sheets_H-164 Request Quote

Materials

H-164 strut channels are produced from prime structural steel covered by the following specifications.

  • Pre-Galvanized Steel - ASTM A-653
  • Plain Steel - ASTM A-1011-04-SS
  • Aluminum (Type 6063T6) - ASTM B-221
  • Stainless Steel (Type 304 & 316) - ASTM A-240
  • Other materials and specifications available on request.

Finishes

All H-164 strut channels are stocked in pre-galvanized and powder coated Supr-Green. Some sizes are stocked in zinc trivalent chromium, PVC or hot dipped galvanized.

  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating 40 ML Thickness - Available Upon Request

Loading Data

  1. When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
  2. When calculating beam and column loads for aluminum, multiply by 33%.
  3. See Table 1 for additional technical data.

Notes

  • Other materials, finishes, lengths and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-164 strut channels are produced and stocked in 10' and 20' lengths with a tolerance of ± 1/8".

  • Other lengths are available upon request.
Span or Unbraced Height(in) Static Beam Load (X-X Axis) Max. Allowable Load at Slot Face(lbs) Column Loading Data
Max Allowable Uniform Load(lbs) Deflection at Uniform Load(in) Uniform Load at Deflection Max. Column Load Applied at C.G.
Span/180 Deflection(lbs) Span/240 Deflection(lbs) Span/360 Deflection(lbs) Weight of Channel(lbs) k=.65(lbs) k=.80(lbs) k=1.0(lbs) k=1.2(lbs)
12 970 0.03 970 970 970 1 2,010 6,500 6340 6090 5820
18 640 0.06 640 640 520 1.5 1,890 6,120 5820 5410 5010
24 480 0.11 480 440 300 2.1 1,740 5,690 5270 4700 3980
30 390 0.17 380 280 190 2.6 1,590 5,240 4700 3800 2930
36 320 0.25 260 200 130 3.1 1,420 4,790 3980 2930 2050
42 280 0.33 190 140 100 3.6 1,250 4,200 3270 2170 1510
48 240 0.44 150 110 70 4.1 1,090 3,620 2600 1660 1150
60 190 0.68 90 70 50 5.2 830 2,520 1660 1060 **
72 160 0.98 70 50 30 6.2 650 1,750 1150 ** **
84 140 1.34 50 40 20 7.2 ** 1,280 ** ** **
96 120 1.75 40 30 20 8.2 ** ** ** ** **
108 110 2.21 30 20 10 9.3 ** ** ** ** **
120 100 2.73 20 20 NR 10.3 ** ** ** ** **
144 80 3.93 20 NR NR 12.4 ** ** ** ** **
168 70 5.34 NR NR NR 14.4 ** ** ** ** **
180 60 6.13 NR NR NR 15.5 ** ** ** ** **
192 60 6.98 NR NR NR 16.5 ** ** ** ** **
216 50 8.83 NR NR NR 18.5 ** ** ** ** **
240 50 10.91 NR NR NR 20.6 ** ** ** ** **

# Bearing Load may limit load | ** Not recommended - KL/r exceeds 200

Notes:

  • The beam capacities shown above include the weight of the strut beam. The beam weight must be subtracted from these capacities to arrive at the net beam capacity.
  • Allowable beam loads are based on a uniformly loaded, simply supported beam. For capacities of a beam loaded at midspan at a single point, multiply the beam capacity by 50% and deflection by 80%.
  • The above chart shows beam capacities for strut without holes. For strut with holes, multiply by the following:
    OS by 88%, OS3 by 90%, RS (9⁄16 holes) by 88%, RS-MOD (3⁄4 holes) by 85%, KO by 82%, OS2.5 by 86%

H-164

H-STRUT: H164

UNISTRUT: P-4100

POWERSTRUT: PS-500

B-LINE: B-54

SUPERSTRUT: B1400

H-164-A

H-STRUT: H164-A

UNISTRUT: P-4101

POWERSTRUT: PS-500-2T3

B-LINE: B-54-A

H-164-IN

H-STRUT: H164-IN

B-LINE: B-54-1

H-164-KO

H-STRUT: H164-KO

UNISTRUT: P-4100-6KO

POWERSTRUT: PS-500-KO6

B-LINE: B-54-1-6KO

H-164-OS

H-STRUT: H164-OS

UNISTRUT: P-4100-T

POWERSTRUT: PS-500-EH

B-LINE: B-54-SH

SUPERSTRUT: B1400-HS

H-164-OS3

H-STRUT: H164-OS3

UNISTRUT: P-4100-SL

POWERSTRUT: PS-500-SL

B-LINE: B-54-S

H-164-RS

H-STRUT: H164-RS

UNISTRUT: P-4100-HS

POWERSTRUT: PS-500-H

B-LINE: B-54-1 7/8

SUPERSTRUT: B1400-P
