H-162

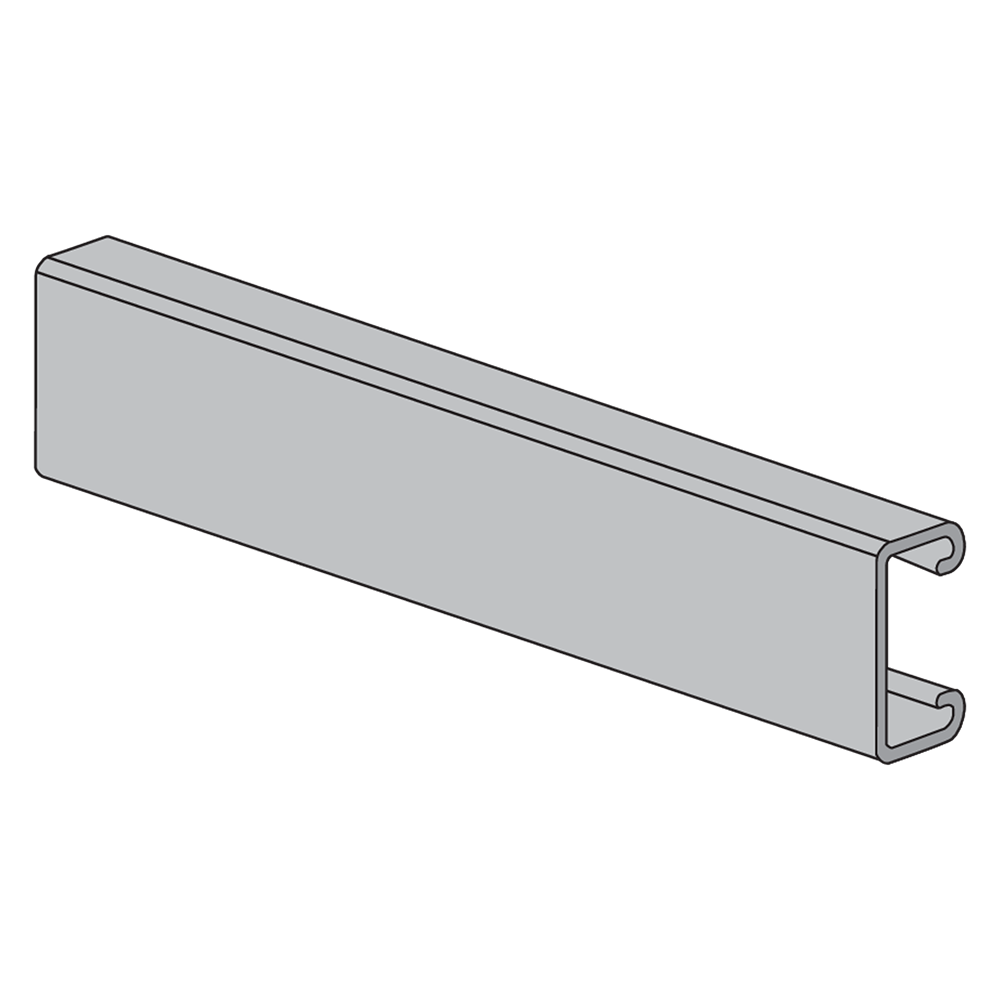

H-162 Channel

H-162 strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross section of uniform dimensions within a tolerance of plus or minus 0.015", on outside dimensions.

  • 12-Gauge Channel
  • 13/16" X 1-5/8"
  • wt./100 ft. - 135#

Submittal Sheets_final_H-162 Request Quote

Materials

H-162 strut channels are produced from prime structural steel covered by the following specifications.

  • Pre-Galvanized Steel - ASTM A-653
  • Plain Steel - ASTM A-1011-04-SS
  • Aluminum (Type 6063T6) - ASTM B-221
  • Stainless Steel (Type 304 & 316) - ASTM A-240
  • Other materials and specifications available on request.

Finishes

All H-162 strut channels are stocked in pre-galvanized and powder coated Supr-Green. Some sizes are stocked in zinc trivalent chromium, PVC or hot dipped galvanized.

  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating 40 ML Thickness - Available Upon Request

Loading Data

  1. When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
  2. When calculating beam and column loads for aluminum, multiply by 33%.
  3. See Table 1 for additional technical data.

Notes

  • Other materials, finishes, lengths and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-162 strut channels are produced and stocked in 10' and 20' lengths with a tolerance of ± 1/8".

  • Other lengths are available upon request.
  Static Beam Load (X-X Axis) Column Loading Data
Max. Column Load Applied at C.G.
Span or Unbraced Height(in) Max Allowable Uniform Load(lbs) Deflection at Uniform Load(in) Uniform Load at Deflection Weight of Channel(lbs) Max Allowable Load at Slot Face(lbs) k=.65(lbs) k=.80(lbs) k=1.0(lbs) k=1.2(lbs)
Span/180 Deflection(lbs) Span/240 Deflection(lbs) Span/360 Deflection(lbs)
12 1130 0.03 1130 1130 1130 1.4 2410 8480 8280 7990 7710
18 750 0.06 750 750 620 2.1 2270 8030 7710 7090 6390
24 560 0.11 560 520 350 2.7 2090 7510 6860 5900 4910
30 450 0.17 450 340 220 3.4 1880 6800 5900 4670 3500
36 380 0.24 310 230 160 4.1 1680 6030 4910 3500 2430
42 320 0.33 230 170 110 4.8 1470 5220 3950 2570 1790
48 280 0.43 170 130 90 5.5 1280 4430 3080 1970 1370
60 230 0.67 110 80 60 6.9 970 2980 1970 ** **
72 190 0.97 80 60 40 8.2 760 2070 1370 ** **
84 160 1.32 60 40 30 9.6 ** 1520 ** ** **
96 140 1.72 40 30 20 11 ** ** ** ** **
108 130 2.18 30 30 20 12.4 ** ** ** ** **
120 110 2.69 30 20 NR 13.7 ** ** ** ** **
144 90 3.88 20 NR NR 16.5 ** ** ** ** **
168 80 5.28 NR NR NR 19.2 ** ** ** ** **
180 80 6.06 NR NR NR 20.6 ** ** ** ** **
192 70 6.89 NR NR NR 22 ** ** ** ** **
216 60 8.72 NR NR NR 24.7 ** ** ** ** **
240 60 10.77 NR NR NR 27.5 ** ** ** ** **

# Bearing Load may limit load | ** Not recommended - KL/r exceeds 200

Notes:

  • The beam capacities shown above include the weight of the strut beam. The beam weight must be subtracted from these capacities to arrive at the net beam capacity.
  • Allowable beam loads are based on a uniformly loaded, simply supported beam. For capacities of a beam loaded at midspan at a single point, multiply the beam capacity by 50% and deflection by 80%.
  • The above chart shows beam capacities for strut without holes. For strut with holes, multiply by the following:
    OS by 88%, OS3 by 90%, RS (9⁄16 holes) by 88%, RS-MOD (3⁄4 holes) by 85%, KO by 82%, OS2.5 by 86%
