H-132-IN

H-132-IN

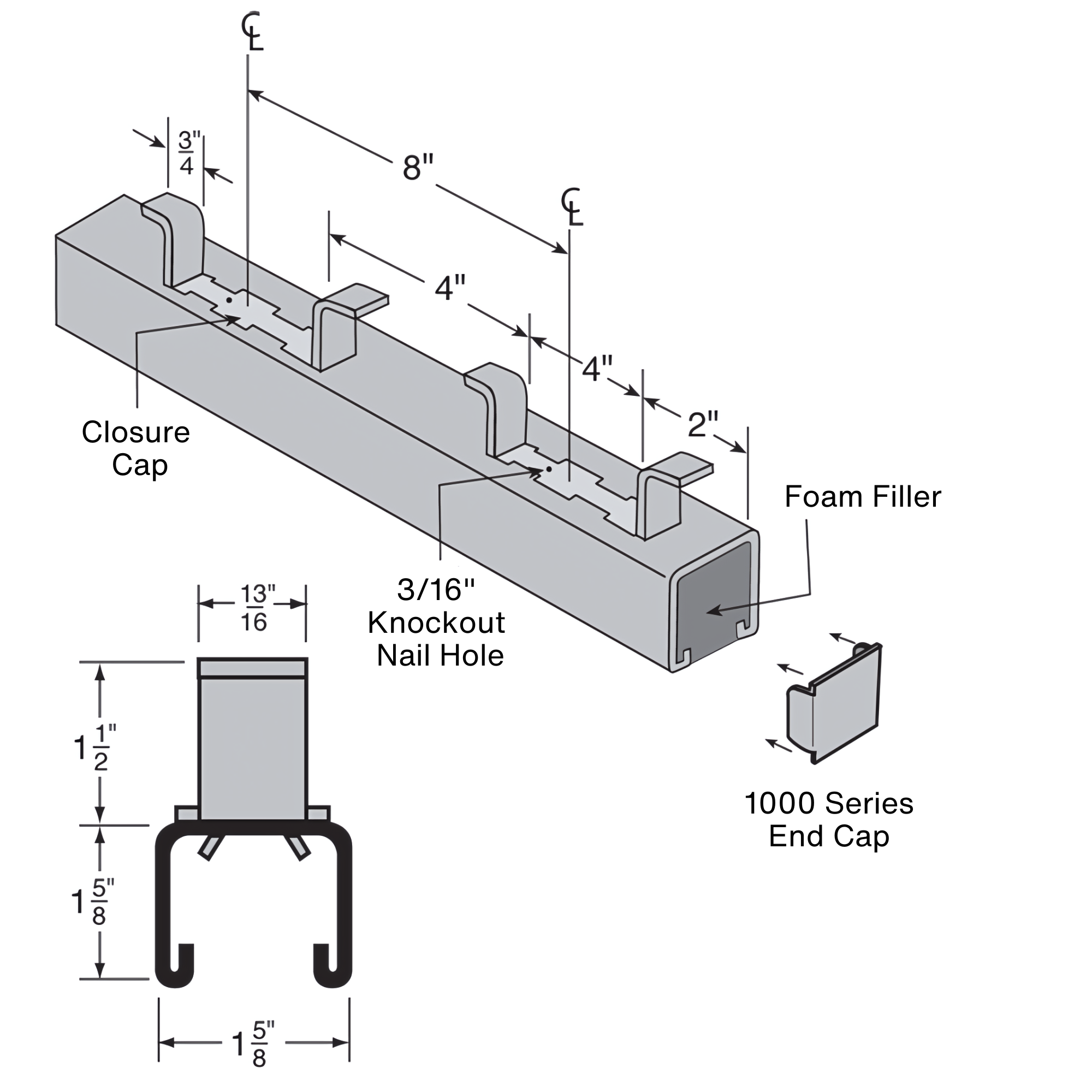

1 5/8" x 1 5/8" x 12 gauge Concrete Insert

Any cut length that is not divisible by 8" is only provided as a point of reference for loads.

Submittal Sheets_H-132-IN Request Quote

Materials

H-132-IN concrete inserts and accessories are produced from prime steel covering the following specifications:

  • Hot Rolled Carbon Steel - ASTM A-1011-04-SS
  • Cold Rolled Carbon Steel - ASTM A-1008
  • Stainless Steel - Type 304/316 - ASTM A-240

Finishes

H-132-IN concrete inserts and accessories are stocked in the following finishes:

  • Pre-Galvanized - ASTM A-653-G90
  • Hot Dipped Galvanized - ASTM A-123
  • Electro Galvanized - ASTM B-633

Loading Data

  1. Loading data was calculated in a concrete mixture which was proportioned so that the compression strength of the concrete was 2,500 to 3,000 pounds per square inch and that the load is dependent on the surrounding concrete.
  2. Tests were performed with a safety factor of 3, and in accordance with the MFMA Specifications.

Notes:

  • Any cut length that is not divisible by 8" is only provided as a point of reference for loads.

Technical Information

  • H-132-IN concrete inserts are produced and stocked in 10 and 20 foot lengths.
  • Inserts should be secured to forms at 16" intervals.
  • Other lengths are available upon request.
Length(in) Weight/100 pcs. Max. Allowable Lbs. Load Per 12” Section
12 194 2,000
18 291 2,000
24 388 2,000
30 485 2,000
36 582 2,000
48 776 2,000
60 970 2,000
72 1,164 2,000
84 1,358 2,000
96 1,552 2,000
108 1,746 2,000
120 1,940 2,000
240 3,880 2,000

Notes:

  • When ordering, please indicate finish and either foam filler, or plastic closure.
  • Any cut length that is not divisible by 8" is only provided as a point of reference for loads.
