H-112-RS

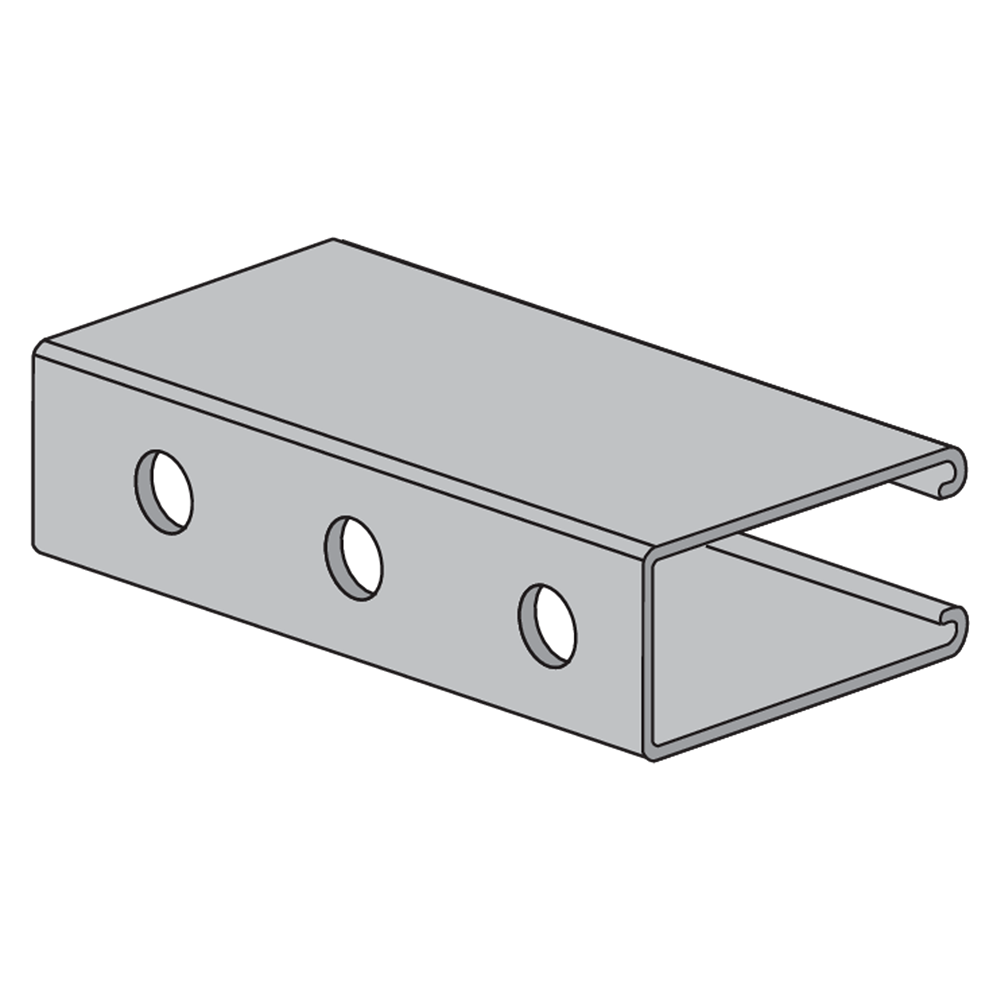

H-112 Channel With Holes

H-112-RS strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross section of uniform dimensions within a tolerance of plus or minus 0.015", on outside dimensions.

  • 12 Gauge Channel with holes 9/16" on 1-7/8" Centers
  • 3-1/4" X 1-5/8"
  • wt./100 ft. - 308#

Submittal Sheets_final_H-112 RS Request Quote

Materials

H-112-RS strut channels are produced from prime structural steel covered by the following specifications.

  • Pre-Galvanized Steel - ASTM A-653
  • Plain Steel - ASTM A-1011-04-SS
  • Aluminum (Type 6063T6) - ASTM B-221
  • Stainless Steel (Type 304 & 316) - ASTM A-240
  • Other materials and specifications available on request.

Finishes

H-112-RS strut channels are stocked in pre-galvanized and powder coated Supr-Green. Some sizes are stocked in zinc trivalent chromium, PVC or hot dipped galvanized.

  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating 40 ML Thickness - Available Upon Request

Loading Data

  1. When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
  2. When calculating beam and column loads for aluminum, multiply by 33%.
  3. See Table 1 for additional technical data.

Notes

  • Other materials, finishes, lengths and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-112-RS strut channels are produced and stocked in 10' and 20' lengths with a tolerance of ± 1/8".

  • Other lengths are available upon request.
Span or Unbraced Height(in) Static Beam Load (X-X Axis) Max. Allowable Load at Slot Face(lbs) Column Loading Data
Max Allowable Uniform Load(lbs) Deflection at Uniform Load(in) Uniform Load at Deflection Max. Column Load Applied at C.G.
Span/180 Deflection(lbs) Span/240 Deflection(lbs) Span/360 Deflection(lbs) Weight of Channel(lbs) k=.65(lbs) k=.80(lbs) k=1.0(lbs) k=1.2(lbs)
12 10,610 0.01 10,610 10,610 10,610 3.1 6,170 19,600 19,060 18,210 17,240
18 7,070 0.02 7,070 7,070 7,070 4.7 5,950 18,320 17,240 15,630 13,920
24 5,300 0.03 5,300 5,300 5,300 6.3 5,650 16,720 15,070 12,770 10,560
30 4,240 0.05 4,240 4,240 4,240 7.8 5,270 14,920 12,770 10,030 7,640
36 3,540 0.07 3,540 3,540 3,540 9.4 4,840 13,060 10,560 7,640 5,650
42 3,030 0.09 3,030 3,030 3,030 11.0 4,360 11,230 8,560 5,910 4,450
48 2,650 0.12 2,650 2,650 2,650 12.5 3,860 9,530 6,850 4,790 3,660
60 2,120 0.18 2,120 2,120 1,920 15.7 3,100 6,680 4,790 3,450 2,710
72 1,770 0.26 1,770 1,770 1,340 18.8 2,570 4,980 3,660 2,710 2,170
84 1,520 0.36 1,520 1,470 980 21.9 2,200 3,950 2,960 2,240 1,820
96 1,330 0.47 1,330 1,130 750 25.0 1,930 3,270 2,500 1,920 1,580
108 1,180 0.60 1,180 890 590 28.2 1,730 2,800 2,170 1,690 1,390
120 1,060 0.74 960 720 480 31.3 1,560 2,450 1,920 1,510 **
144 880 1.06 670 500 330 37.6 1,320 1,980 1,580 ** **
168 760 1.44 490 370 250 43.8 1,150 1,670 1,340 ** **
180 710 1.65 430 320 210 47.0 ** 1,550 ** ** **
192 660 1.88 380 280 190 50.1 ** 1,450 ** ** **
216 590 2.38 300 220 150 56.3 ** ** ** ** **
240 530 2.94 240 180 120 62.6 ** ** ** ** **

# Bearing Load may limit load | ** Not recommended - KL/r exceeds 200

Notes:

  • The beam capacities shown above include the weight of the strut beam. The beam weight must be subtracted from these capacities to arrive at the net beam capacity.
  • Allowable beam loads are based on a uniformly loaded, simply supported beam. For capacities of a beam loaded at midspan at a single point, multiply the beam capacity by 50% and deflection by 80%.
  • The above chart shows beam capacities for strut without holes. For strut with holes, multiply by the following:
    OS by 88%, OS3 by 90%, RS (9⁄16 holes) by 88%, RS-MOD (3⁄4 holes) by 85%, KO by 82%, OS2.5 by 86%
