H-112-A

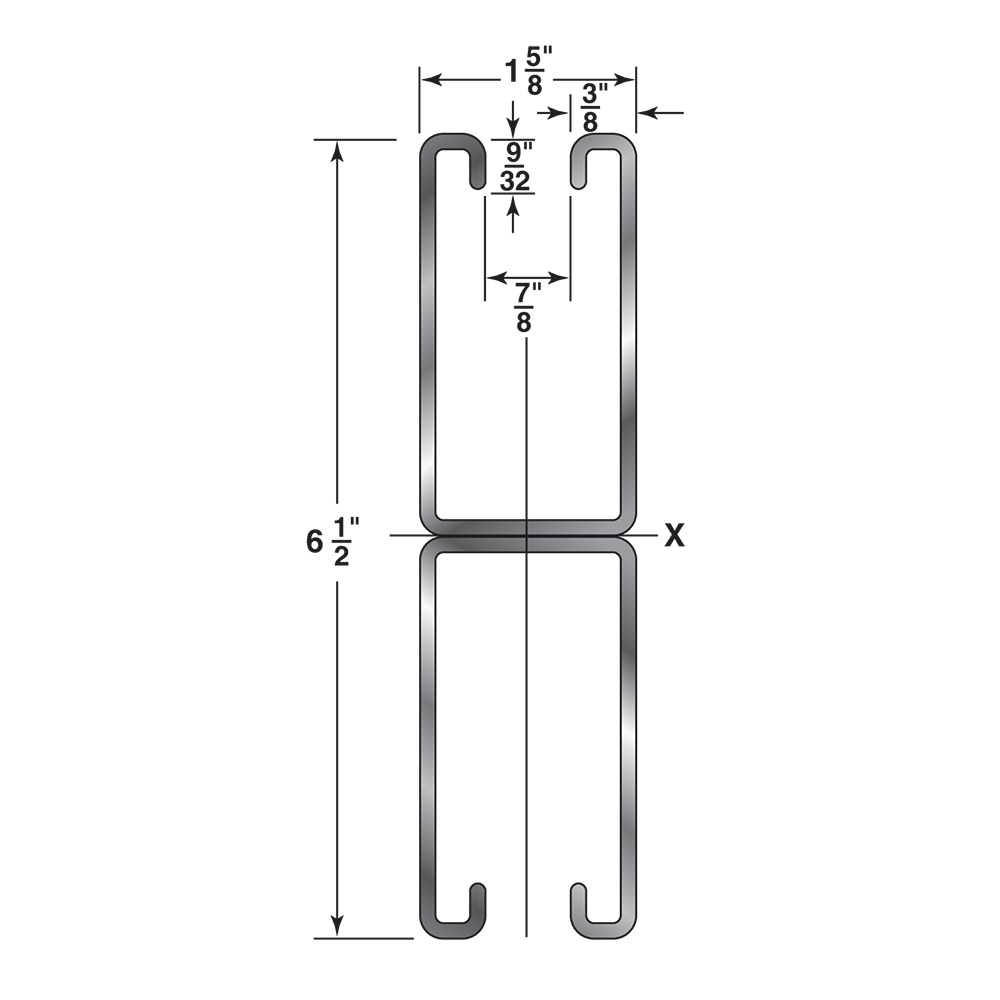

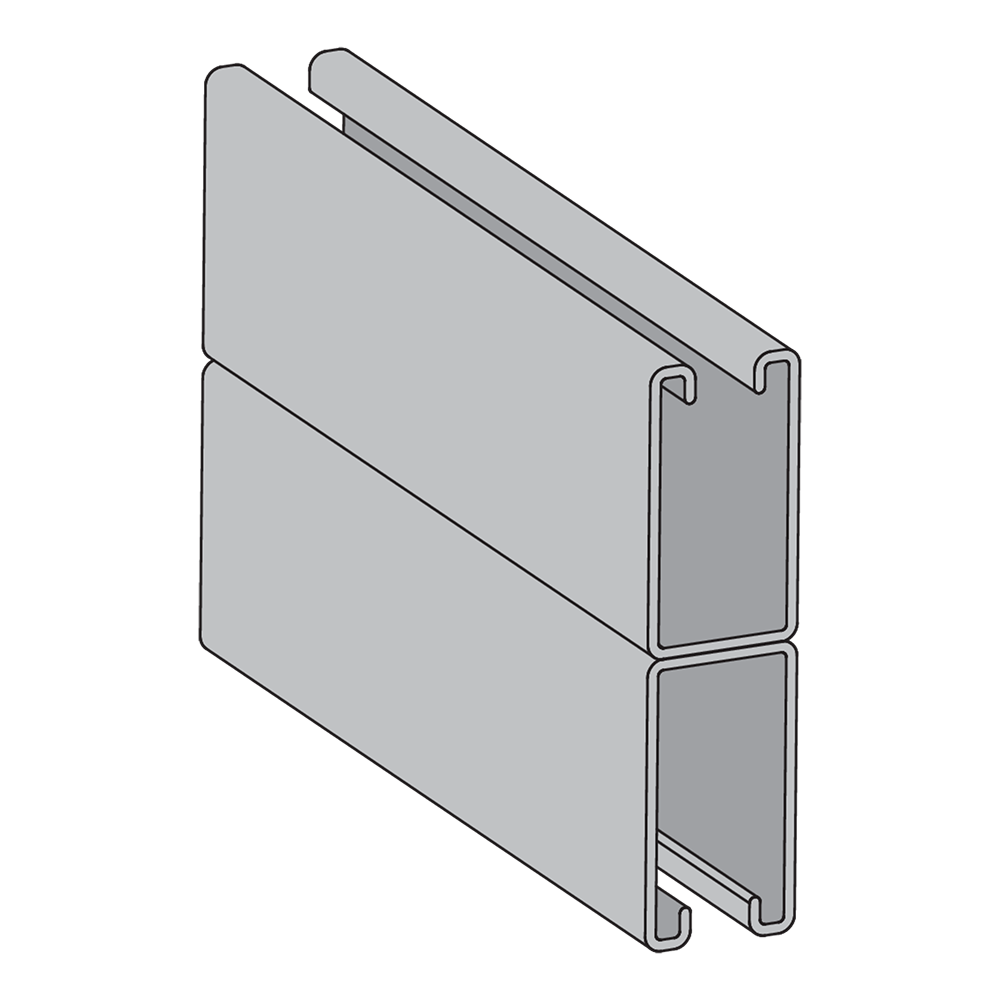

H-112 Back to Back Welded Channel - 2 Pieces

H-112-A strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross section of uniform dimensions within a tolerance of plus or minus 0.015", on outside dimensions.

  • 12 Gauge Back to Back Welded Channel 2-Pieces
  • 6-1/2" x 1-5/8"
  • wt./100 ft. - 626#

Submittal Sheets_final_H-112-A Request Quote

Materials

H-112-A strut channels are produced from prime structural steel covered by the following specifications.

  • Pre-Galvanized Steel - ASTM A-653
  • Plain Steel - ASTM A-1011-04-SS
  • Aluminum (Type 6063T6) - ASTM B-221
  • Stainless Steel (Type 304 & 316) - ASTM A-240
  • Other materials and specifications available on request.

Finishes

All H-112-A strut channels are stocked in pre-galvanized and powder coated Supr-Green. Some sizes are stocked in zinc trivalent chromium, PVC or hot dipped galvanized.

  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating 40 ML Thickness - Available Upon Request

Loading Data

  1. When calculating load at center of span, multiply load from table by 0.5 and deflection by 0.8.
  2. When calculating beam and column loads for aluminum, multiply by 33%.
  3. See Table 1 for additional technical data.

Notes

  • Other materials, finishes, lengths and configurations are available upon request. Please contact us for other product availability.

Technical Information

H-112-A strut channels are produced and stocked in 10' and 20' lengths with a tolerance of ± 1/8".

  • Other lengths are available upon request.
Span or Unbraced Height(in) Static Beam Load (X-X Axis) Max. Allowable Load at Slot Face(lbs) Column Loading Data
Max Allowable Uniform Load(lbs) Deflection at Uniform Load(in) Uniform Load at Deflection Max. Column Load Applied at C.G.
Span/180 Deflection(lbs) Span/240 Deflection(lbs) Span/360 Deflection(lbs) Weight of Channel(lbs) k=.65(lbs) k=.80(lbs) k=1.0(lbs) k=1.2(lbs)
12 6,890 * 0 6,890 * 6,890 * 6,890 * 6.3 10910 41100 40940 40680 40360
18 6,890 * 0.01 6,890 * 6,890 * 6,890 * 9.4 10860 40720 40360 39780 39080
24 6,890 * 0.02 6,890 * 6,890 * 6,890 * 12.5 10780 40180 39560 38550 37360
30 6,890 * 0.02 6,890 * 6,890 * 6,890 * 15.7 10690 39500 38550 37030 35250
36 6,890 * 0.04 6,890 * 6,890 * 6,890 * 18.8 10570 38690 37360 35250 32840
42 6,890 * 0.05 6,890 * 6,890 * 6,890 * 21.9 10440 37750 35990 33260 30200
48 6,890 * 0.06 6,890 * 6,890 * 6,890 * 25 10280 36700 34480 31100 27420
60 6450 0.1 6450 6450 6450 31.3 9900 34280 31100 26470 21740
72 5370 0.14 5370 5370 5370 37.6 9440 31540 27420 21740 16370
84 4610 0.19 4610 4610 4610 43.8 8890 28590 23620 17230 12030
96 4030 0.25 4030 4030 4030 50.1 8260 25520 19890 13270 9210
108 3580 0.32 3580 3580 3370 56.3 7550 22440 16370 10480 7280
120 3220 0.39 3220 3220 2730 62.6 6790 19440 13270 8490 **
144 2690 0.57 2690 2690 1900 75.1 5510 13960 9210 ** **
168 2300 0.77 2300 2090 1390 87.6 4520 10250 6770 ** **
180 2150 0.89 2150 1820 1210 93.9 ** 8930 ** ** **
192 2020 1.01 2020 1600 1070 100.2 ** 7850 ** ** **
216 1790 1.27 1690 1260 840 112.7 ** ** ** ** **
240 1610 1.57 1370 1020 680 125.2 ** ** ** ** **

# Bearing Load may limit load | ** Not recommended - KL/r exceeds 200

Notes:

  • The beam capacities shown above include the weight of the strut beam. The beam weight must be subtracted from these capacities to arrive at the net beam capacity.
  • Allowable beam loads are based on a uniformly loaded, simply supported beam. For capacities of a beam loaded at midspan at a single point, multiply the beam capacity by 50% and deflection by 80%.
  • The above chart shows beam capacities for strut without holes. For strut with holes, multiply by the following:
    OS by 88%, OS3 by 90%, RS (9⁄16 holes) by 88%, RS-MOD (3⁄4 holes) by 85%, KO by 82%, OS2.5 by 86%
