E-511

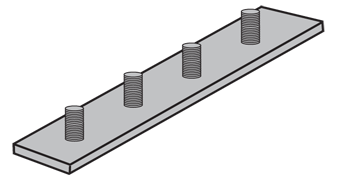

Stud Plate

H-STRUT Stud Plates are designed to fit all H-STRUT channels to make a surface raceway. Electrical Fittings are also designed to fit all H-STRUT channels. Nuts are not included. 1/4" Studs
Wt. 40#/C

Submittal Sheets_E-511 Request Quote

Material

Channels, Closure Strips and Accessories are manufactured from the following materials:

  • Hot Rolled Steel Sheet - A-1011-04-SS
  • Cold Rolled Steel Sheet - ASTM A-1008
  • Stainless Steel-Type 304/316 - ASTM A-240

Finish

Channels, Closure Strips and Accessories are available in the following finishes:

  • Pre-Galvanized - ASTM A-653-G90
  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • Plastic: Green, white, black Other finishes available upon request

E-511

H-STRUT: E511

B-LINE: B-466
