E-510

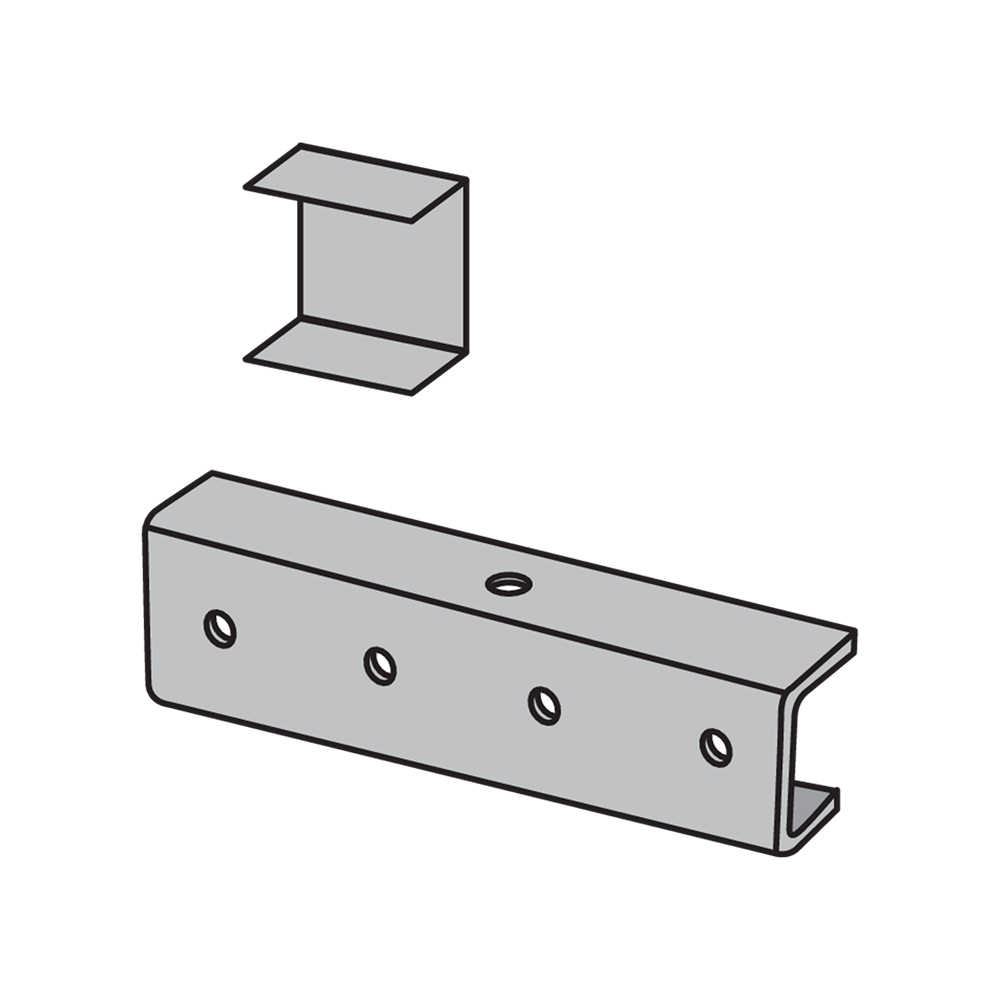

Four-Hole Splice Clevis with Splice Clip

H-STRUT 4-Hole Splice Clevis with Splice Clip are designed to fit all H-STRUT channels to make a surface raceway. Electrical Fittings are also designed to fit all H-STRUT channels.
Wt. 40#/C

Submittal Sheets_E-510 Request Quote

Material

Channels, Closure Strips and Accessories are manufactured from the following materials:

  • Hot Rolled Steel Sheet - A-1011-04-SS
  • Cold Rolled Steel Sheet - ASTM A-1008
  • Stainless Steel-Type 304/316 - ASTM A-240

Finish

Channels, Closure Strips and Accessories are available in the following finishes:

  • Pre-Galvanized - ASTM A-653-G90
  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • Plastic: Green, white, black Other finishes available upon request

E-510-1

H-STRUT: E5101

UNISTRUT: P-3925

POWERSTRUT: PS-2582

B-LINE: B-166-46-12

SUPERSTRUT: E802

E-510-11/2

H-STRUT: E51011/2

UNISTRUT: P-5521-50

E-510-2

H-STRUT: E5102

UNISTRUT: P-3922

POWERSTRUT: PS-649

B-LINE: B-166-46-22

SUPERSTRUT: A822

E-510-3

H-STRUT: E5103

UNISTRUT: P-3923

POWERSTRUT: PS-694

B-LINE: B-166-46-32

SUPERSTRUT: C822

E-510-4

H-STRUT: E5104

POWERSTRUT: PS-693

B-LINE: B-166-46-42

E-510-5

H-STRUT: E5105

UNISTRUT: P-3924

POWERSTRUT: PS-942

B-LINE: B-166-46-52

SUPERSTRUT: B822
