C-407

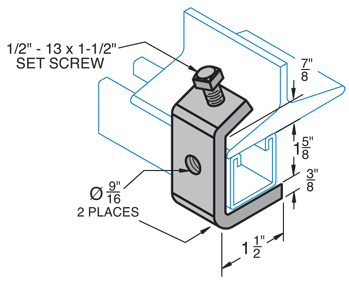

7/8" Offset Open Flange Beam Clamp

H-STRUT Offset Open Flange Beam Clamps are designed to secure all H-STRUT 1-5/8" wide channels, or threaded rod, to beams or supports for the purpose of running piping, conduit or tubing. All H-STRUT fittings are manufactured from 1/4" thick carbon steel or cast malleable iron. Wt. 92#/C Please specify model, material and finish when ordering. Please contact us for any other clamps you may need.

Submittal Sheets_C-407 Request Quote

Material

  • Hot Rolled Steel Sheet - ASTM A-1101
  • Cold Rolled Steel Sheet - ASTM A-1008
  • Stainless Steel-Type 304/316
  • ASTM A-240
  • Malleable Cast Iron

Finish

  • Electro-Galvanized - ASTM B-633
  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating - Available Upon Request

C-407

H-STRUT: C407

UNISTRUT: P-1271S

POWERSTRUT: PS-684

B-LINE: B-427

SUPERSTRUT: U515
