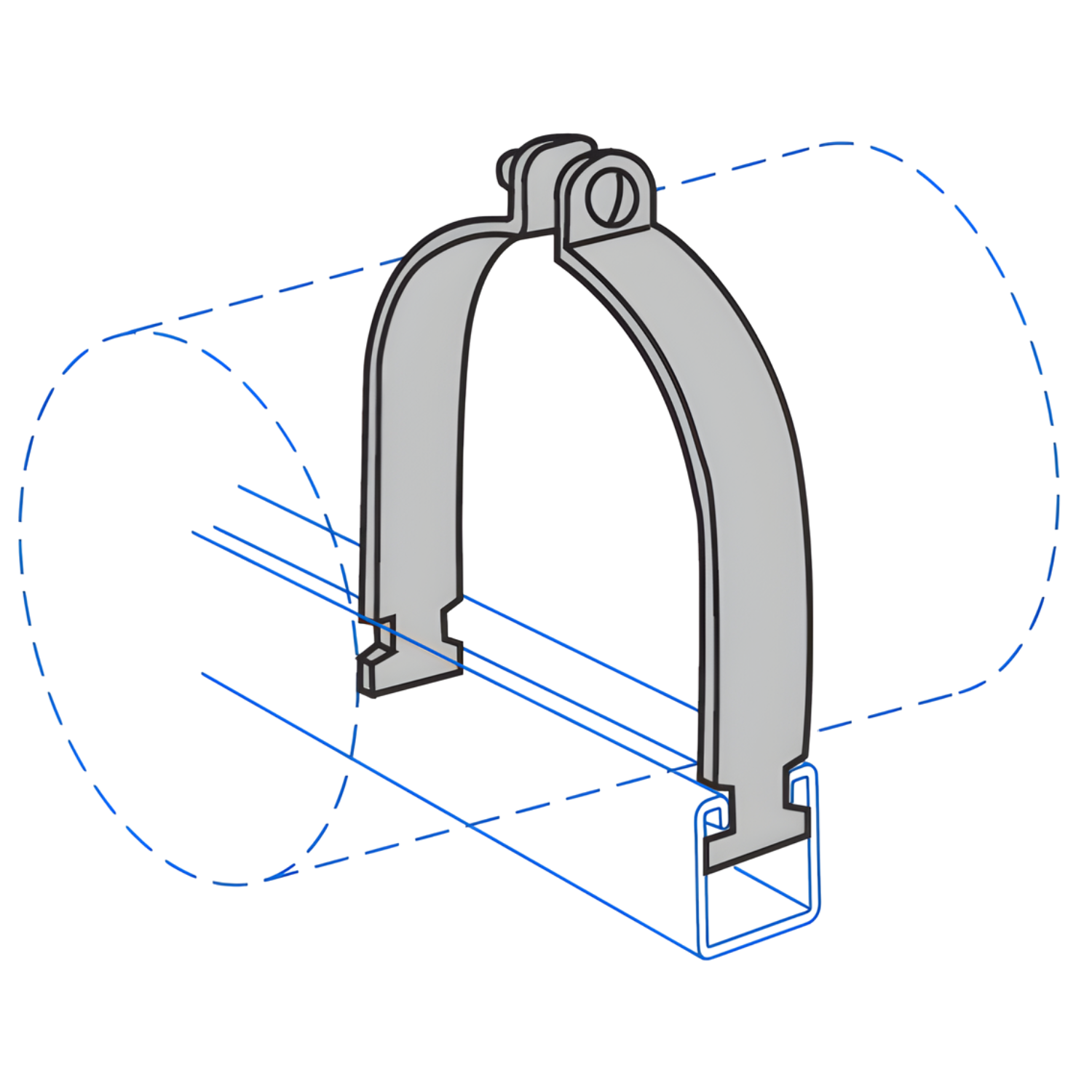

Specifications
| Pipe Size |
O.D. Size |
Steel Ga. |
Wt./100 Pcs. |
Std. Pkg. |
| 1/4" |
|
|
|
|
| 3/8" |
0.675 |
16 |
12 |
100 |
| 1/2" |
0.84 |
16 |
13 |
100 |
| 3/4" |
1.05 |
14 |
15 |
100 |
| 1" |
1.315 |
14 |
18 |
100 |
| 1-1/4" |
1.66 |
14 |
22 |
50 |
| 1-1/2" |
1.9 |
12 |
32 |
50 |
| 2" |
2.375 |
12 |
37 |
50 |
| 2-1/2" |
2.875 |
12 |
42 |
50 |
| 3" |
3.5 |
12 |
49 |
50 |
| 3-1/2" |
4 |
11 |
65 |
25 |
| 4" |
4.5 |
11 |
69 |
25 |
| 5" |
5.563 |
11 |
82 |
20 |
| 6" |
6.625 |
10 |
107 |
20 |
| 8" |
8.625 |
10 |
133 |
Bulk |
Design Loads*
| Nominal Pipe Size |
Slip Thru (lbs) |
Slip Along (lbs) |
Pullout (lbs) |
| 1/2" |
213 |
77 |
907 |
| 3/4" |
142 |
169 |
992 |
| 1" |
131 |
174 |
806 |
| 1-1/4" |
354 |
150 |
1,160 |
| 1-1/2" |
335 |
336 |
1,564 |
| 2" |
405 |
506 |
1,572 |
| 2-1/2" |
287 |
548 |
1,610 |
| 3" |
496 |
452 |
1,317 |
| 3-1/2" |
434 |
531 |
1,490 |
| 4" |
518 |
576 |
1,505 |
| 5" |
411 |
567 |
1,313 |
| 6" |
406 |
563 |
1,531 |
| 8" |
580 |
664 |
2,018 |
*Safety Factor: 3.0
C-1102-1
H-STRUT: C11021
UNISTRUT: P-1113
POWERSTRUT: PS-1101-1
B-LINE: B-2010
SUPERSTRUT: 702-1
C-1102-1/2
H-STRUT: C11021/2
UNISTRUT: P-1111
POWERSTRUT: PS-1100-1/2
B-LINE: B-2008
SUPERSTRUT: 702-1/2
C-1102-10
H-STRUT: C110210
POWERSTRUT: PS-1100-10
C-1102-11/2
H-STRUT: C110211/2
UNISTRUT: P-1115
POWERSTRUT: PS-1100-11/2
B-LINE: B-2012
SUPERSTRUT: 702-11/2
C-1102-11/4
H-STRUT: C110211/4
UNISTRUT: P-1114
POWERSTRUT: PS-1100-1 1/4
B-LINE: B-2011
SUPERSTRUT: 702-11/4
C-1102-2
H-STRUT: C11022
UNISTRUT: P-1117
POWERSTRUT: PS-1100-2
B-LINE: B-2013
SUPERSTRUT: 702-2
C-1102-21/2
H-STRUT: C110221/2
UNISTRUT: P-1118
POWERSTRUT: PS-1100-21/2
B-LINE: B-2014
SUPERSTRUT: 703-21/2
C-1102-3
H-STRUT: C11023
UNISTRUT: P-1119
POWERSTRUT: PS-1100-3
B-LINE: B-2015
SUPERSTRUT: 703-3
C-1102-3/4
H-STRUT: C11023/4
UNISTRUT: P-1112
POWERSTRUT: PS-1100-3/4
B-LINE: B-2009
SUPERSTRUT: 702-3/4
C-1102-3/8
H-STRUT: C11023/8
UNISTRUT: P-1109
POWERSTRUT: PS-1100-3/8
B-LINE: B-2007
SUPERSTRUT: 702-3/8
C-1102-31/2
H-STRUT: C110231/2
UNISTRUT: P-1120
POWERSTRUT: PS-1100-31/2
B-LINE: B-2016
SUPERSTRUT: 703-31/2
C-1102-4
H-STRUT: C11024
UNISTRUT: P-1121
POWERSTRUT: PS-1100-4
B-LINE: B-2017
SUPERSTRUT: 703-4
C-1102-5
H-STRUT: C11025
UNISTRUT: P-1123
POWERSTRUT: PS-1100-5
B-LINE: B-2019
SUPERSTRUT: 702-5
C-1102-6
H-STRUT: C11026
UNISTRUT: P-1124
POWERSTRUT: PS-1100-6
B-LINE: B-2020
SUPERSTRUT: 702-6
C-1102-8
H-STRUT: C11028
UNISTRUT: P-1126
POWERSTRUT: PS-1100-8
B-LINE: B-2022
SUPERSTRUT: 702-8
