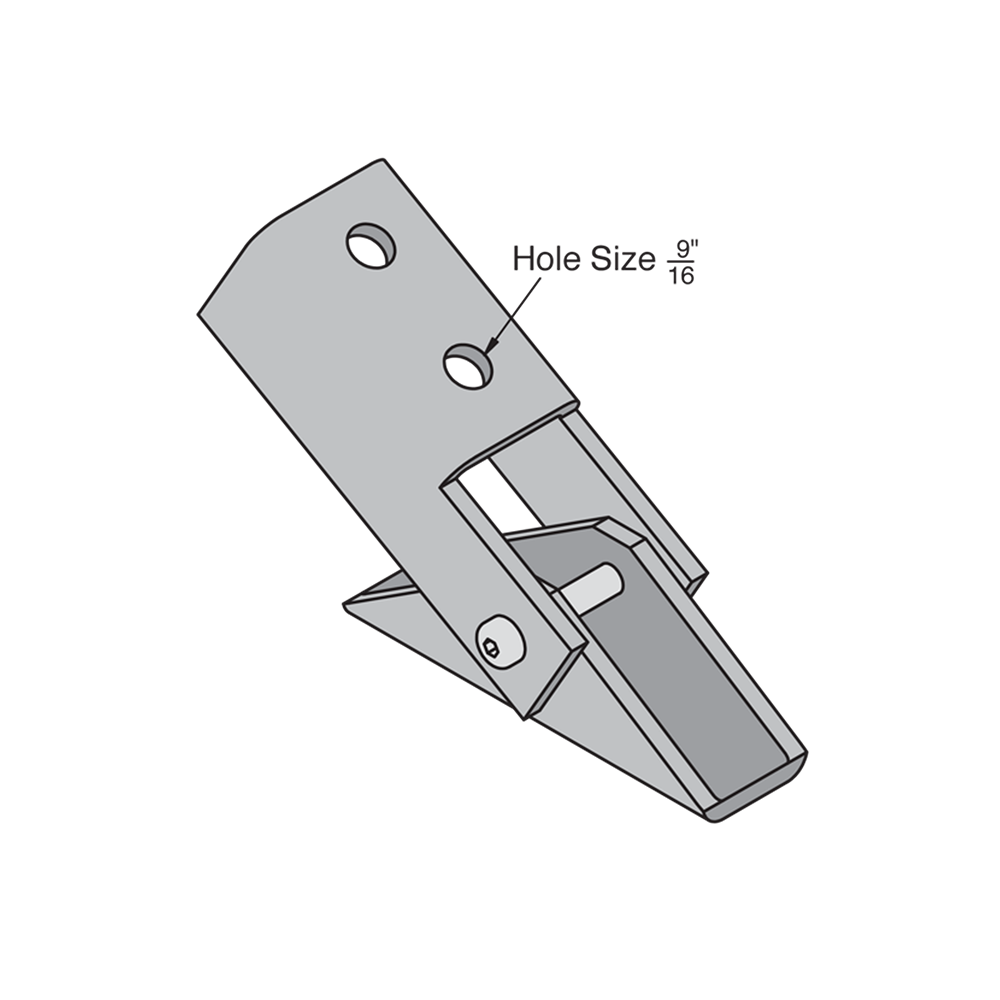

AB-9400

Adjustable Base for 1 5/8" Single Channel

H-STRUT General Fittings are designed to fit with all H-STRUT 1-5/8" wide channels. All H-STRUT fittings are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.
Wt. 307#/C

Submittal Sheets_AB-9400 Request Quote

Material

H-STRUT fittings are manufactured from the following material:

  • Hot Rolled Steel Sheet - ASTM A-1011
  • Cold Rolled Steel Sheet - ASTM A-1008
  • Stainless Steel-Type 304/316 - ASTM A-240
  • Aluminum Fitting - ASTM B-221

Finish

H-STRUT fittings are available in the following finishes:

  • Electro Galvanized - ASTM B-633
  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating - Available Upon Request
