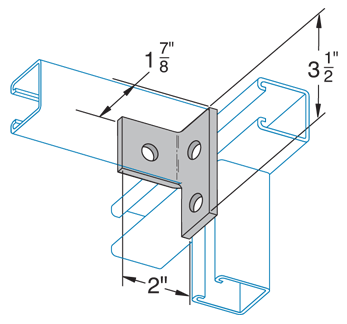

A-330 L/R

Three Hole 90˚ Angle Connector

H-STRUT General Fittings are designed to fit with all H-STRUT 1-5/8" wide channels. All H-STRUT fittings are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.
Please specify if left of right bracket in your order.
Wt. 54#/C
