A-321 L/R

Three Hole Single Angle Connector

H-STRUT General Fittings are designed to fit with all H-STRUT 1-5/8" wide channels. All H-STRUT fittings are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.

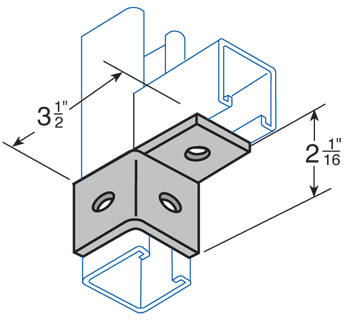

Right hand illustrated in image.
Wt. 60#/C

Submittal Sheets_A-321 Request Quote

Material

  • Hot Rolled Steel Sheet - ASTM A-1011
  • Cold Rolled Steel Sheet - ASTM A-1008
  • Stainless Steel-Type 304/316 - ASTM A-240
  • Aluminum Fitting - ASTM B-221

Finish

  • Electro Galvanized - ASTM B-633
  • Hot Dipped Galvanized - ASTM A-123
  • Zinc Trivalent Chromium - ASTM B-633-85
  • Powder Coated Supr-Green - ASTM B-117
  • PVC Coating - Available Upon Request

A-321

H-STRUT: A321

UNISTRUT: P-2341

POWERSTRUT: PS-922

B-LINE: B-267

A-321-1

H-STRUT: A3211

UNISTRUT: P-2343

POWERSTRUT: PS-2128

B-LINE: B-269
