A-319

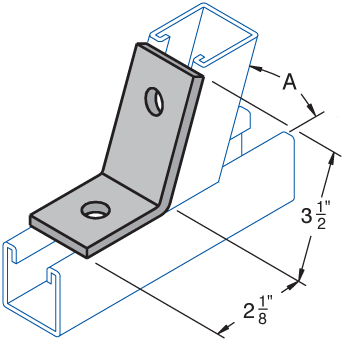

Two-Hole Open Angle Bracket

H-STRUT General Fittings are designed to fit with all H-STRUT 1-5/8" wide channels. All H-STRUT fittings are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.
Wt. 63#/C
Available angles:
- 82-1/2°
- 75°
- 67-1/2°
- 60°
- 52-1/2°
- 37-1/2°
